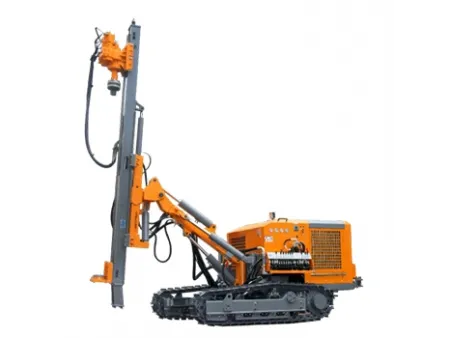

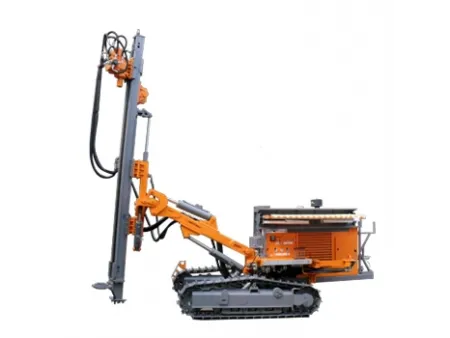

Solar Piling Drill Rig
Request a Quote
Crawler-mounted drill rig for solar piling and foundation drilling applications
- High speed: 140r/min, Torque 4000N·m
- Low speed: 70r/min, Torque 8000N·m
| Emission standard | China II (MTO) | China III | China IV |
| Model | Yuchai YC4A100 | Yuchai YC4DK100 | Yuchai YCF36100 |
| Rated power | 70 kW | 73.5 kW | 74 kW |
| Features | Enhanced drilling boom and feeding system | Hydraulic winch standard on 420TF / 430TF | Hydraulic winch optional on 430GF |
| Model | | | |
| Weight | 5000kg | 5920kg | 7000kg |
| Dimensions (L x W x H) | 5600x2308x2500mm | 6000x2306x2500mm | 7000x2300x2800m |
| China IV engine (standard) | Yuchai / 74kW | ||
| Max. rotation torque | 5000N·m | 8000N·m | 8000N·m |
| Drilling hole diameter | Ø110-250mm | Ø110-350mm | Ø110-350mm |
| DTH hammer (standard) | 4'' | Configurable | |
| Drilling rod | Ø76x3000mm | Configurable | |
| Diesel tank volume | 70L | 70L | 156L |
Leveraging many years of global field experience to provide perfectly matched drilling tools, drill rigs, and air compressors for your toughest projects.
