Natural Sunlight Concentrator Ultra-Accelerated Weathering Test

Request a Quote

Website: http://testchamber-en.com/12-1-natural-sunlight-concentrator.html

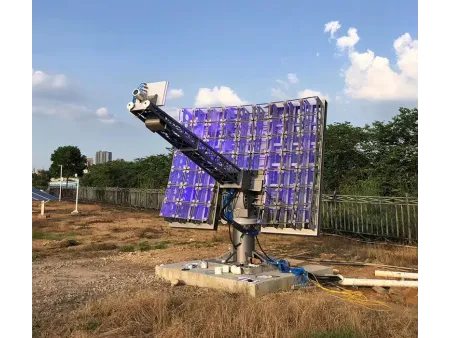

Accelerated outdoor weathering system using sunlight as the light source for aging test on materials

The natural sunlight concentrator is a specialized weathering system developed to address the demanding durability requirements of multiple industries. Unlike artificial light sources, it uses concentrated natural sunlight to significantly accelerate the aging process, helping manufacturers predict product lifespan in a much shorter timeframe.

Applications include

Materials Industry: For evaluating polymers like plastics and rubber, which are prone to degradation from light, heat, and oxygen exposure in outdoor environments.
Automotive Sector: Used to assess how coatings, paints, and exterior components endure prolonged sunlight, temperature fluctuations, and other weathering factors.
Photovoltaics: Critical for testing solar modules exposed to high levels of radiation, heat, and humidity, ensuring reliable energy output over time.
Coatings and Paints: Applied in testing finishes for buildings, furniture, and vehicles, where weathering resistance affects both appearance and durability.
Aerospace: Essential for validating materials and parts that face extreme UV radiation and rapid temperature shifts in flight conditions.

Features

Achieves an average reflectance of ≥95% in the ultraviolet range (295–400 nm) to maximize UV exposure for accelerated weathering.
In the infrared and visible light range (400–1500 nm), the average reflectance is kept ≤5%, effectively limiting unwanted heating of the samples.
The effective test area measures 280 × 280 mm, maintaining irradiance uniformity with a deviation of no more than ±5%.
The actual acceleration factor reaches 42.4 times compared to standard outdoor conditions, providing highly efficient aging simulation.
The temperature in the specimen zone is precisely controlled to remain below 60 °C to prevent thermal damage during testing.

Advantages

By combining advanced solar concentration optics with an efficient tracking system, the natural sunlight concentrator can deliver irradiance levels up to 30–50 times higher than natural exposure. This drastically shortens testing cycles and improves throughput compared to traditional artificial weathering methods.
Real sunlight is used as the exposure source to accurately reproduce material aging in outdoor conditions, minimizing discrepancies caused by artificial lamp spectra and providing results that better reflect real-world performance.
By relying on natural solar energy instead of high-consumption artificial lamps, the natural sunlight concentrator reduces energy use and greenhouse gas emissions while also lowering overall operating costs.
A built-in monitoring and control system continuously tracks irradiance intensity on the sample surfaces, temperature, and humidity, automatically adjusting parameters to keep test conditions consistent and improve the repeatability of results.
It can be used across a wide range of industries, including polymer materials, photovoltaics, coatings, automotive parts, and aerospace components, supporting product development, performance evaluation, and durability assessments.

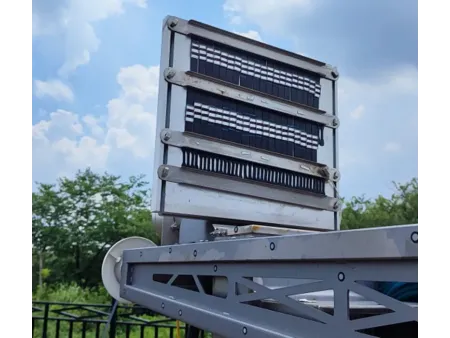

The design integrates advanced technologies such as a spherical mirror array and hybrid reflective membranes to enhance UV reflectivity, along with automated solar tracking, dynamic adjustment of the concentration angle, and intelligent alarms that simplify operation and improve safety.
