Automatic Cell-Free DNA/RNA Blood Collection Tube Assembly Line Manufacturer

Automatic Cell-Free DNA/RNA Blood Collection Tube Assembly Line

Request a Quote

View All: http://medical-machinery.com/1-4-1-automatic-cell-free-dna-rna-blood-collection-tube-assembly-line.html

12,000-15,000 pcs/h

Blood collection tube assembly machine for cell-free DNA and RNA collection tubes

Production capacity 12,000-15,000 pcs/h
Tube size Ø13×100mm, Ø16×100mm, customizable
(available in PET and glass)
Cap size As per client’s samples

Finished Product Samples

As the demand for precise cell-free DNA/RNA testing increases in medical research, having reliable production equipment becomes essential. This automatic assembly line offers a high-capacity solution, producing 12,000 to 15,000 cell-free DNA/RNA blood collection tubes per hour. Designed for 13×100mm and 16×100mm tubes, the system efficiently manages the entire production workflow, ensuring consistent quality at every step. From precise additive dosing to vacuuming and accurate labeling, this line is optimized for the specific needs of DNA/RNA collection and testing.

Work Flow

Tube loading

Inversion detection

Additive dosing (cell-free DNA/RNA solution)

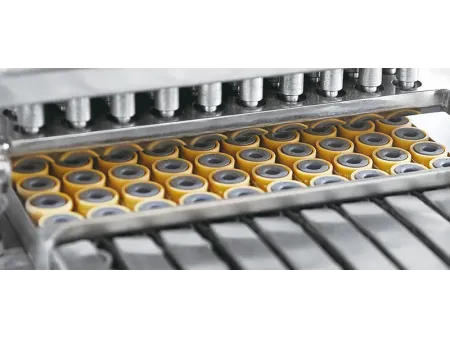

Capping

Vacuuming

Labeling (unlabeled tubes automatically rejected)

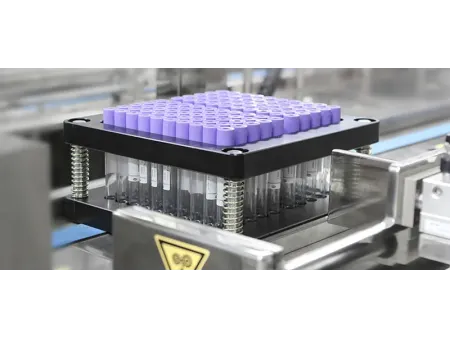

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Production capacity	12,000-15,000 pcs/h
Tube size	Ø13×100mm, Ø16×100mm, customizable (available in PET and glass)
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	DNA/RNA solution: 10 sets of precision ceramic pump (100-900μL ±6%)
Detection system	Rejection of unlabeled tubes
	Inverted tube detection before additive dosing
	Alarm for shortage of foam trays
Vacuum degree	Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan)
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	18kW/AC380V
