Modular Cell-Free DNA/RNA Blood Collection Tube Assembly Line Manufacturer

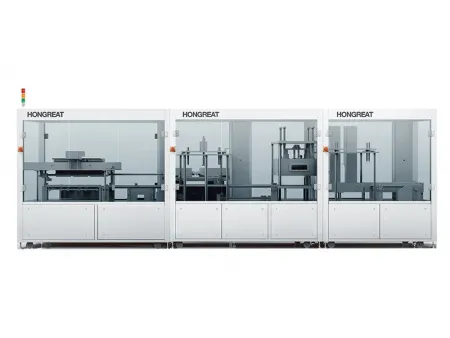

Modular Cell-Free DNA/RNA Blood Collection Tube Assembly Line

Request a Quote

View All: http://medical-machinery.com/1-4-2-modular-cell-free-dna-rna-blood-collection-tube-assembly-line.html

12,000-15,000 pcs/h

Blood collection tube assembly machine for cell-free DNA and RNA collection tubes

Production capacity 12,000-15,000 pcs/h
Tube size Ø13×100mm, Ø16×100mm, customizable
(available in PET and glass)
Cap size As per client’s samples

Finished Product Samples

In modern medical diagnostics, the ability to customize production lines to meet changing demands is key. For labs and manufacturers focused on cell-free DNA/RNA collection tubes, this modular assembling system provides exactly that flexibility. Capable of producing 12,000 to 15,000 tubes per hour, it efficiently handles both PET and glass tubes with precise dosing of DNA/RNA solutions. The modular design means you can adapt and expand the system as your production needs evolve, ensuring efficiency and accuracy at every step.

Work Flow

Tube loading

Inversion detection

Additive dosing (cell-free DNA/RNA solution)

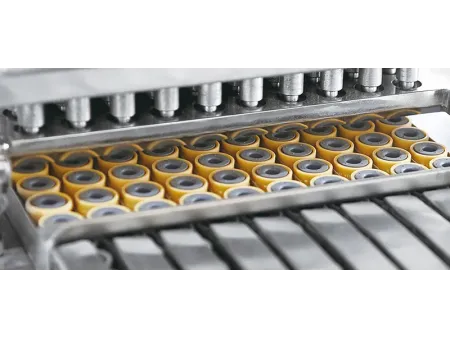

Capping

Vacuuming

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Production capacity	12,000-15,000 pcs/h
Tube size	Ø13×100mm, Ø16×100mm, customizable (available in PET and glass)
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	DNA/RNA solution: 10 sets of precision ceramic pump (100-900μL ±6%)
Detection system	Inverted tube detection before additive dosing
Detection system	Alarm for shortage of foam trays
Vacuum degree	Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan)
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	15kW/AC380V
