Wood sawing machine for cutting solid wood into desired shapes and sizes

Woodworking Machinery

Max. workpiece size (L×W)1220×1220mm
Max. working thickness250mm
Machine weight2700kg
Overall dimensions2000×1400×2300mm

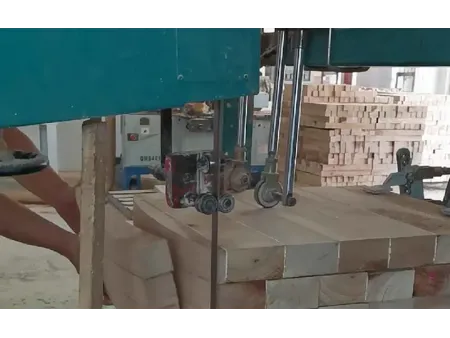

CNC band saw is a high-efficiency sawing machine equipped with an advanced numerical control system, specifically designed for cutting solid wood into required shapes and sizes. Compared to manual sawing, it offers significantly faster cutting speeds and greater accuracy, making it ideal for large-scale wood processing. With its ability to handle high volumes in a short time while minimizing material waste, this machine is well-suited for mass production environments that demand both speed and precision.

Features

It delivers high processing efficiency with clean surface finishes and eliminates the need for cross-cutting.
The band saw conserves wood material, supports a wide processing range, allows automatic programming, and separates human operation from cutting zones to reduce the risk of workplace injury, making it ideal for wood furniture manufacturers.
It uses a non-rotating saw blade system capable of 90° rotation, with blade widths ranging from 10mm to 20mm, the well-engineered structure reduces breakage and extends blade life.
Compact in footprint but broad in application, it provides high output in limited workshop space.
The wide infeed table improves workflow and cutting speed, while powerful pneumatic clamps offer reliable and wide-range fixation for synchronized multi-layer sawing.
The precision of the saw frame is enhanced by a dedicated clamping mechanism.
Its advanced CNC control system, equipped with integrated CAD software and automatic unloading, simplifies operation, minimizes wood waste, and is easy for operators to learn.

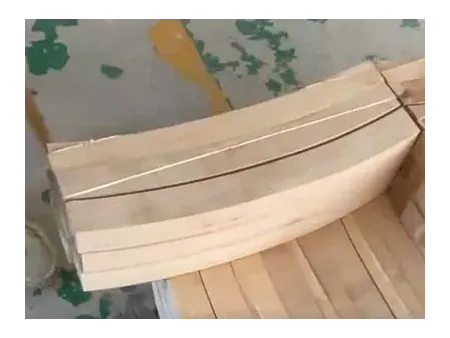

Sample Showcase

Specifications

Mode	CNC1212	CNC1225
Max. workpiece size (L×W)	1220×1220mm	1220×2500mm
Max. working thickness	250mm	250mm
Saw wheel diameter	600mm	600mm
Min. cutting radius	R80 or R95mm	R80 or R95mm
Cutting depth	760mm	760mm
Cutting angle	±90°	±90°
X-axis motor	15N·m	15N·m
Y-axis motor	10N·m	10N·m
Z-axis motor	6N·m	6N·m
Spindle motor	4kW	4kW
Max. X-axis speed	40m/min	40m/min
Max. Y-axis speed	40m/min	40m/min
Max. Z-axis speed	180°/sec	180°/sec
Working speed	1-25m/min	1-25m/min
Return speed	6-40m/min	6-40m/min
Air pressure	0.6-0.8MPa	0.6-0.8MPa
Dust outlet diameter	Ø100	Ø100
Machine weight	2700kg	3000kg
Overall dimensions	2000×1400×2300mm	2000×1400×2300mm
