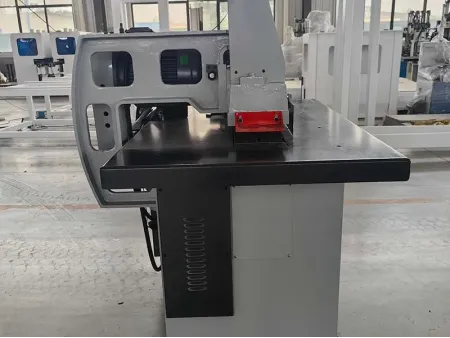

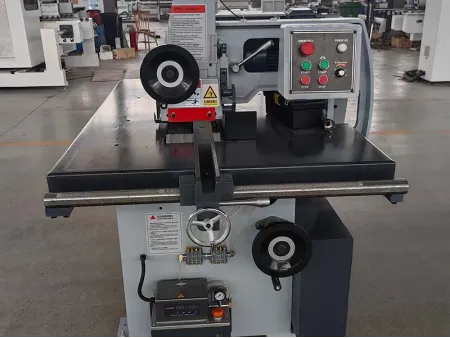

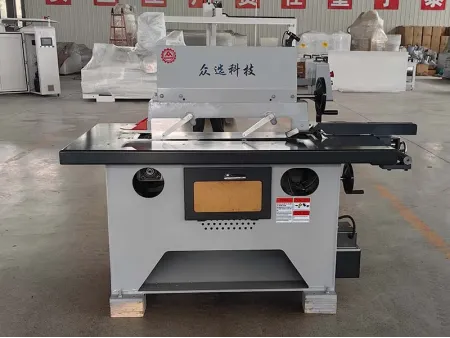

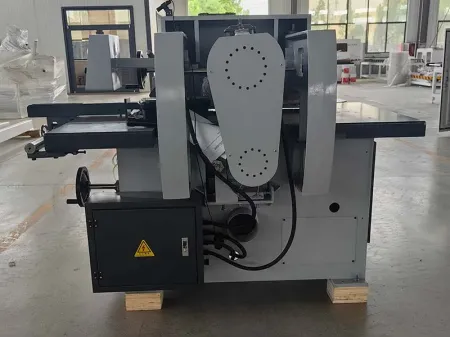

Straight Line Rip Saw

Request a Quote

View All: http://woodmachines-en.com/1-4-5-straight-line-rip-saw.html

//Woodworking Machinery

Single blade wood sawing machine for trimming and ripping of wood boards

Woodworking Machinery

Min. workpiece length170mm
Min. working length200mm
Machine dimensions (L×W×H)1860×1170×1400mm
Machine weight1200kg

Straight line rip saws are widely used for ripping wide wood boards into narrower strips according to specified width requirements. They perform accurate longitudinal cuts and edge trimming to meet the size and quality standards of various wood components used in furniture manufacturing. The resulting boards have clean, smooth edges, enhancing both their visual appearance and dimensional precision. This facilitates easier downstream processes such as joining, assembly, or surface finishing in solid wood production workflows.

Specifications

Mode	MJX163	MJX164
Working thickness	10-75mm	10-120mm
Min. workpiece length	170mm	180mm
Min. working length	200mm	250mm
Throat capacity	510mm	650mm
Main spindle speed	4000rpm	2800rpm
Saw blade size	Diameter:355mm Number of tooth:70 teeth Thickness:4mm Arbor hole diameter:50.8mm	Diameter:405mm Number of tooth:70 teeth Thickness:4mm Arbor hole diameter:50.8mm
Feeding speed	5-24m/min	5-40m/min
Main motor power	7.5kW	11kW
Feeding motor power	1.5kW	2.2kW
Pressure roller lifting power	0.35kW	0.37kW
Total power	9kW	13.57kW
Machine dimensions (L×W×H)	1860×1170×1400mm	2245×1365×1400mm
Machine weight	1200kg	2200kg
