Diversifying nonwoven products in surface and pattern design

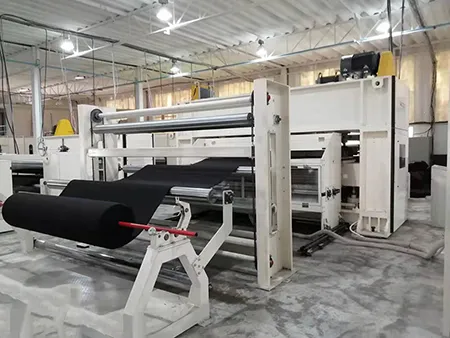

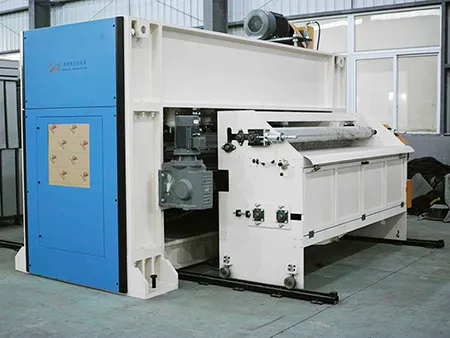

Structuring needle loom is a type of nonwoven equipment used for post-processing of nonwoven fabric products. It has evolved from conventional needle punching technology and aims to enhance the appearance and performance of products.

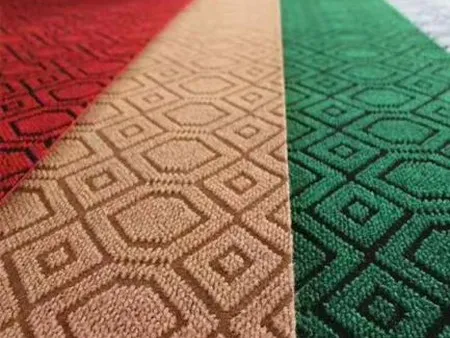

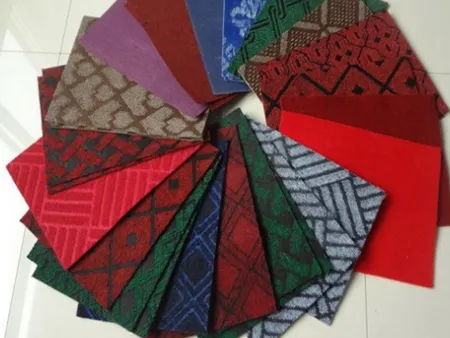

Depending on different production process requirements, this type of nonwoven equipment can be divided into various types, including structuring needle punching machine, jacquard needle punching machine, and stripe needle punching machine, among others, to meet the production needs of different types of nonwoven products.

Applications

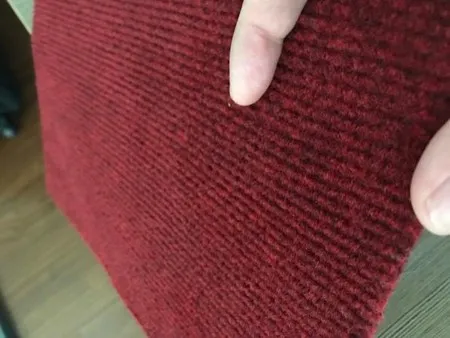

Velour needle loom is primarily used for processing nonwoven fabric products to alter their surface structure, improve product quality and functionality.

Specifications
Velour Needle Punching Machine
Needling frequency ≤1100 rpm
Working width 2000mm~4500mm
Needle density ≤ 8000n/m x 2 Board
Linear speed ≤ 5m/min
Friezing depth ≤ 8mm
Jacquard/ Stripe Needle Punching Machine
Needling frequency ≤1100 rpm
Working width 2000mm~4500mm
Needle density ≤ 5000n/m according to pattern design
Linear speed ≤ 3m/min
Features
  • Automatic variable frequency control and PLC control system.
  • Advanced segmented combination design offers high structural strength, ensuring stable and reliable operation
  • Central circulating lubrication and cooling system
