Carpet Backing Line (Stenter Machine)
The functionalities of the carpet backing line encompass back-coating or impregnation treatment, width stretching and shaping treatment, and composite processing. Customized designs can diversify its functionalities to adapt to different production needs based on the characteristics of different products and technical processing requirements.
Carpet backing line is mainly used in the post-processing of needle-punched nonwoven products in nonwoven machinery.
For nonwoven carpet products, back coating is generally required for curing after heating, while web bonding and drying treatment are applied to shape the products.
In addition, common geotextiles, synthetic leather substrates, shoe fabrics, and other products all involve post-processing procedures requiring width stretching and shaping.

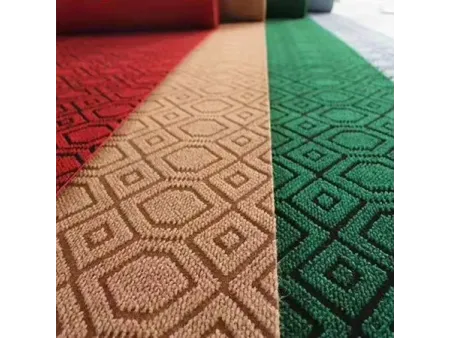

- Nonwoven carpets

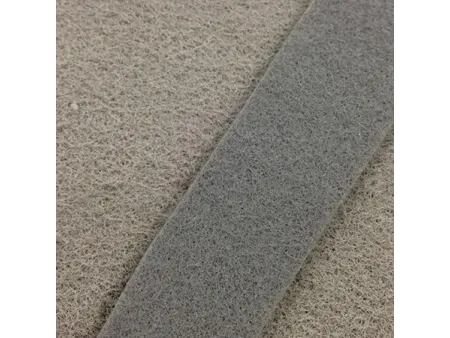

- Nonwoven carpet backing
- The configuration of the carpet backing line can be flexibly adapted according to different products and automation requirements. Taking conventional nonwoven carpets as an example, there are various options for back-coating forms.
- The use of web bonding and drying ensures the quality of the product, with uniform shaping effects and excellent surface appearance.
- The length of the web bonding and drying oven, as well as the heating method, can be customized.
| Production width | 1800mm - 6000mm |
| Linear speed | ≤30m/min (for carpet) |
| Raw material | Nonwoven fabric or other textile |
| Heating Methods | Burner, Thermal Oil |

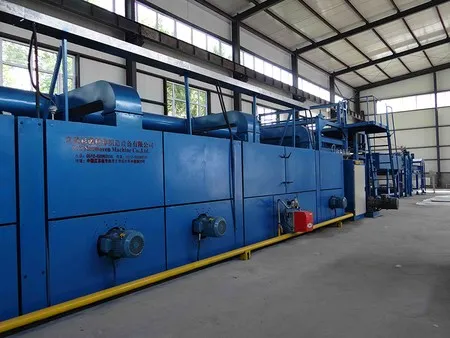

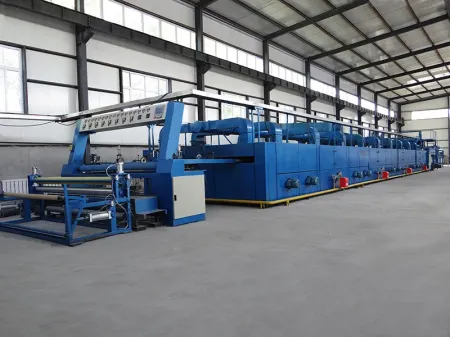

The carpet backing line includes an unwinding machine, fabric storage rack, coating device, web bonding & drying oven, cooling device, and winding machine. Other specifications can be customized according to customer requirements for product width, production capacity, or other specifications.
