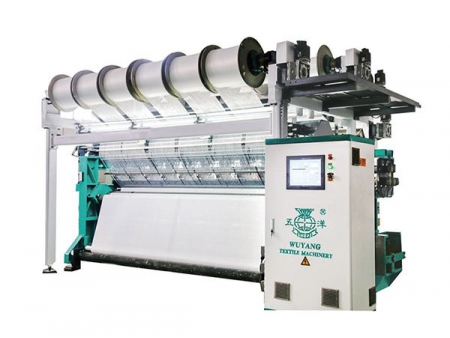

GE290-FJ Raschel Machine
Raschel warp knitting machine with fall plate for producing jacquard curtains and table cloths
Applications
Jacquard curtain fabric, jacquard tablecloth, mesh fabrics for curtains, table cloths, clothing, and home decor.
Features
- Jacquard warp knitting machine uses a cam-link drive mechanism.
- Lace warp knitting machine combines compound needles and fall plate device.
- The lace knitting machine is equipped with electronic yarn let-off, electronic take-up, electronic jacquard bar control, and electronic guide bar control (EL) functions.
Specifications
- Needle type Compound needle
- Number of bars 4 bars (3 ground bars, 1 jacquard bar)
- Number of bars 4 bars (2 ground bars, 2 jacquard bars at front and back of fall plate)
- Gauge E18, E24
- Working width 132"/200"/252"
- Max. speed 550 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5800×4500×3600 | 26.1 | 10000 | 9.75 | |
| 7200×3200×3800 | 23 | 14000 | 10.25 | |
| 8330×3400×3900 | 29 | 21000 | 13.75 | |
| 5800×4000×3600 | 26 | 10000 | 10.75 | |
| 7200×3200×3800 | 23 | 14000 | 11.25 |
