Computer Controlled Continuous Roll Vest Bag Making Machine

Request a Quote

View All: http://plastic-bagmachines.com/1-4-7-computer-controlled-continuous-roll-vest-bag-making-machine.html

Video

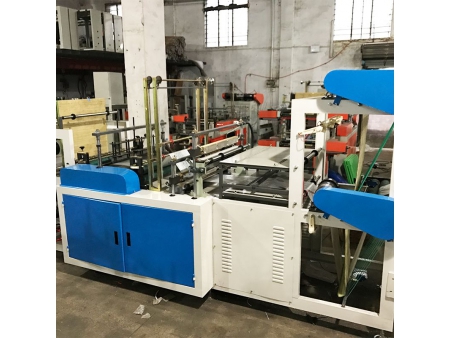

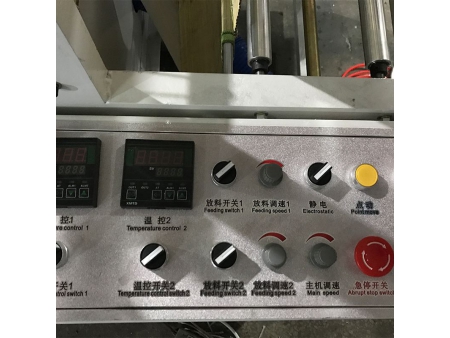

This versatile computer controlled continuous roll vest bag making machine is highly sought-after and perfect for producing both vest bag and flat bag rolls, with both paper core and non-core options. The bag making machine is computer-controlled and can manufacture printed and non-printed bags. It is designed with the ability to automatically adjust cutting length.

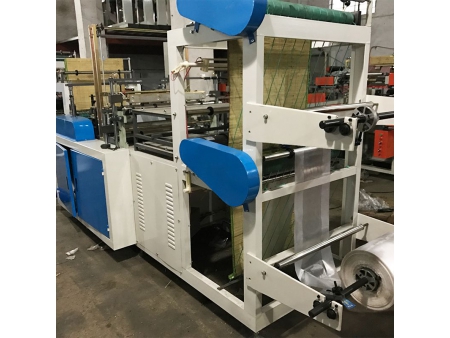

Its unwinder features an up-and-down movement design, allowing the employee to quickly and easily change rolls.

Technical Parameters

Model	DZB-600	DZB-700	DZB-800
Max. width of bags (mm)	500	600	700
Max. length of bags (mm)	1200	1200	1200
Thickness (mm)	0.008-0.15	0.008-0.15	0.008-0.10
Bag making speed (pcs/min)	40-200	40-120	40-120
Power of motor (kW)	1.5	1.5	1.5
Power of electric heater	1.2	1.6	2.2
Packing dimensions	360012001700	360013001700	360015001700
Weight (kg)	800	900	1000

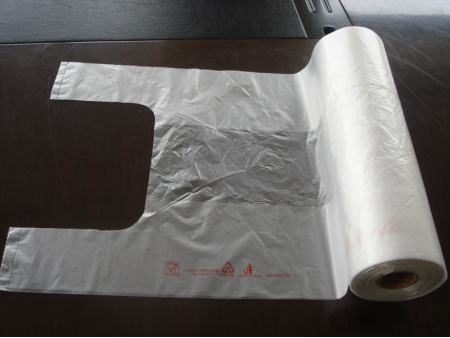

This continuous roll vest bag making machine is versatile for making shopping bags and fruit bags.

Details

Unwinder Spring tension control

Sealing Unit Copper of superior quality is devised for the sealing knife, thereby enhancing its lifespan

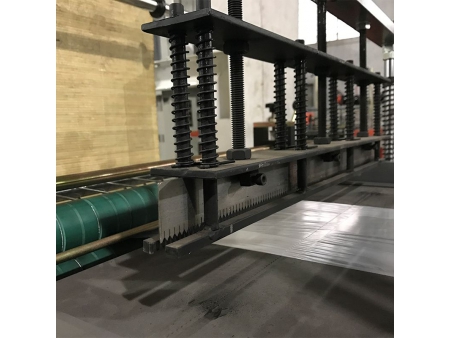

Cutting Unit Flat bag cutting and vest bag cutting available

Rewinder Designed for use with both non-core rolls and paper cores

Machine Body Made from 10mm thick steel
