Request a Quote
Video

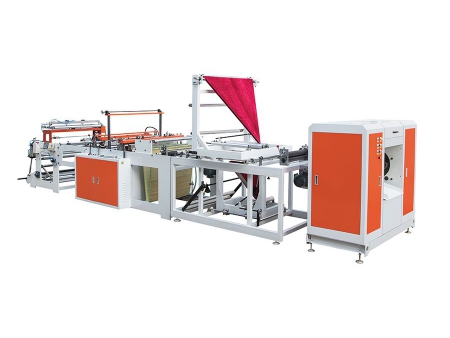

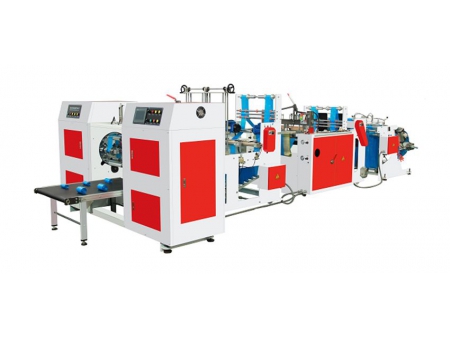

This automatic coreless bag on roll making machine is built to produce large garbage bags and able to fold them in three or four layers. It can quickly and automatically rewind the bags without the use of a paper core, specifically for C-fold garbage bag production.

PLC control makes it simple for employees to manage the entire machine.
This garbage bag making machine is outfitted with top-of-the-line components, such as Delta inverters, Omron temperature controllers, and Schneider electric parts. This ensures high-quality construction.

Technical Parameters
Model
RGRB800
RGRB1000
Product length 400-1200 mm 400-1800 mm
Product width 800 mm 1000 mm
Rewinding width 680 mm 680 mm
Max. production speed 110 p/min 110 p/min
Total power 7 kW 9 kW
Film thickness 0.01-0.04 mm 0.01-0.04 mm
Weight 1500 kg 1700 kg
Dimensions 5800*1800*2100 5800*2000*2100
Main Components
Item Brand Details QTY
Main machine inverter Panasonic inverter 1.5 kW 1 pc
Feeder motor Delta inverter 0.75 kW 2 pcs
Winding motor Delta inverter 0.75 kW 2 pcs
Reverse turning motor Delta inverter 0.75 kW 1 pc
Fixed length motor Panasonic servo motor 3 kW 1 pc
Controller Hangzhou RISHENG ZDJ-SRIII 1 pc
Main motor Made in China 1.5 kW 1 pc
Application

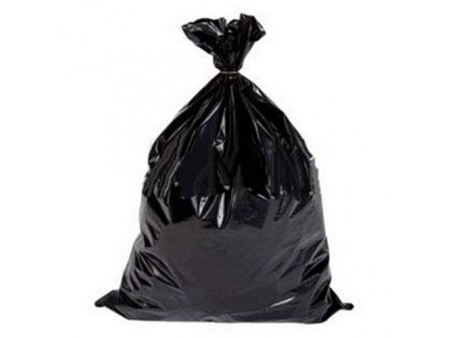

This automatic coreless bag on roll making machine is suitable for making large garbage bags, shopping bags, fruit bags, etc.

Details

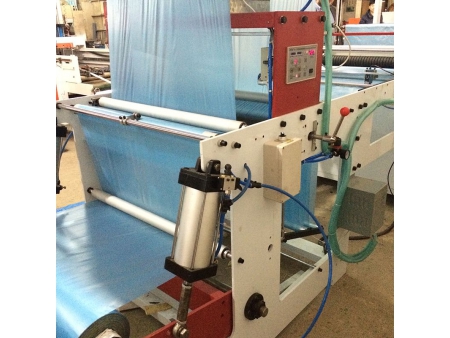

  • Unwinder 1. Equipped with EPC and automatic tension control
    2. Automatic lifting for bag rolls
  • Sealing Unit High quality copper sealing knives, capable of sealing even the thickest of bags at 0.2mm

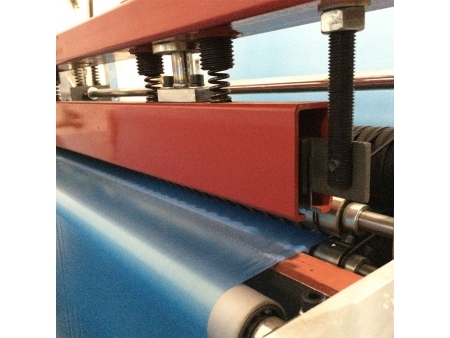

  • Cutting Unit The dot cutting knife provides a great way to cut pieces, adjustable in terms of pressure applied, ensuring the pieces produced meet exact specifications

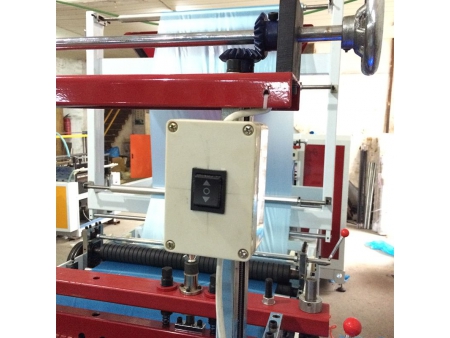

  • Folding Unit Two folding units are provided, and controlled by motor

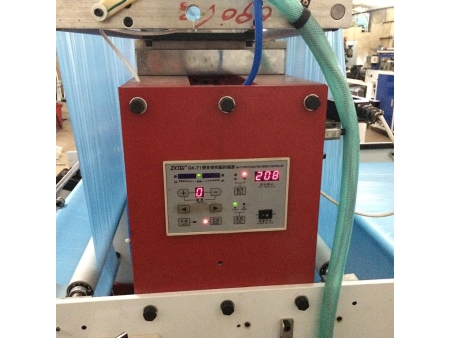

  • Automatic Changer The automatic changer paired with a counting meter enables plastic bag rolls to be automatically changed
