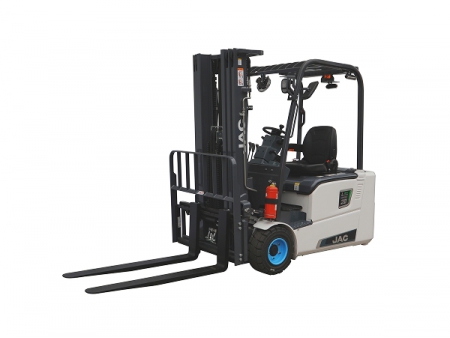

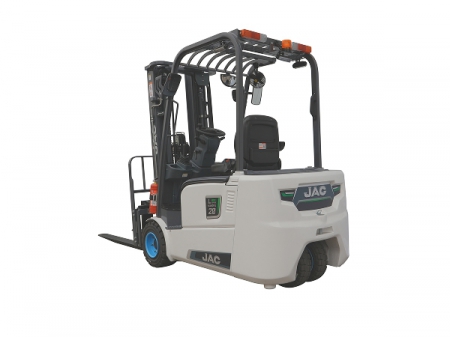

Electric Forklift (1.5-2T Three Wheel Lithium-Ion Forklift, L Series)
The three-wheel lithium-ion electric forklift is a compact counterbalance forklift designed for narrow aisles, workshops, container interiors, loading docks, and warehouse material handling. With front-wheel drive and rear-wheel steering, the rear wheel can turn up to 90 degrees, allowing the truck to pivot around the front wheels for an exceptionally tight turning radius.
Built on a dedicated lithium-electric platform, the forklift combines an 80V AC system, lithium iron phosphate battery technology, a dual-core controller, and a separate motor/battery layout. This design supports stable operation in high-temperature and rainy environments, making the truck suitable for loading, unloading, dock operations, and short-distance warehouse transfer.
| Type | Parameter | Unit | Value | |||
| Features | Model | CPD15SA3 | CPD16SA3 | CPD18SA3 | CPD20SA3 | |
| Configuration | Power Type | |||||
| Rated load capacity | kg | 1500 | 1600 | 1800 | 2000 | |
| Load center | mm | 500 | ||||
| Dimensions | Mast tilt angle (F/R) | ° | 5/7 | |||
| Free lift height | mm | 115 | 120 | |||
| Lift height | mm | 3000 | ||||
| Overhead guard height | mm | 2040 | ||||
| Fork dimensions (L×W×T) | mm | 35×100×920 | 40×122×920 | |||
| Ground clearance (loaded, at mast) | mm | 93 | ||||
| Ground clearance (loaded, at wheelbase center) | mm | 100 | ||||
| Min. aisle width for right-angle stacking, pallet 1000×1200 mm (1200 mm across forks) | mm | 3240 | 3260 | 3370 | ||
| Min. aisle width for right-angle stacking, pallet 800×1200 mm (1200 mm across forks) | mm | 3370 | 3390 | 3500 | ||
| Min. turning radius | mm | 1550 | 1570 | 1675 | ||
| Performance | Max. travel speed (loaded/unloaded) | km/h | 16/16 | |||
| Max. lifting speed (loaded/unloaded) | mm/s | 460/600 | 440/600 | 420/600 | 410/600 | |
| Max. drawbar pull (loaded/unloaded) | N | 13500 | 13800 | 14000 | 14500 | |
| Max. gradeability (loaded/unloaded) | % | 20 | ||||
| Battery | Battery voltage/capacity | V/Ah | 80/202 | 80/202 | 80/202 | 80/202 |
| Motor and Controller | Drive motor power (S2-60min) | kW | 5.5×2 | |||
| Lift motor power (S3-15%) | kW | 16.5 | ||||
| Motor control type | AC | |||||
Features
1.German ZF-GP25 heavy-duty reduction gearbox provides 21% reserve capacity under full-load conditions.
2.Oil-cooled wet disc brakes reduce routine maintenance requirements.
3.Integrated cast steering axle improves structural strength by 19%.
4.Axle-support gear shaft is forged from 42CrMo alloy steel for higher load-bearing reliability.
1.Lithium iron phosphate battery works with an 80V AC drive system for stable electric performance.
2.Dual-core controller supports reliable operation and dual safety protection.
3.Three-phase AC induction motor offers mature technology, maintenance-free operation, IP54 protection, and dependable performance.
1.Controller is mounted on the counterweight for efficient heat conduction and stable operation in summer heat.
2.Separated motor and battery compartment layout improves heat dissipation.
3.Three-layer hood waterproofing design helps prevent rainwater ingress.
4.24° cone-seal hydraulic piping with multiple protection measures supports long-term operating safety.
1.4.5 m triplex mast maintains rated capacity without derating for stable high-level picking.
2.Automatic speed reduction during turning helps reduce rollover risk.
3.Optional mast height positioning and upper cushioning help reduce impact and mast sway.
1.Built around mature lithium battery and electric drive technologies.
2.Standard low-rolling-resistance electric forklift tires improve operating range by 3%.
3.Standard battery heating supports reliable operation in winter conditions.
1.Core components, including the motor, battery, and controller, are maintenance-free.
2.Wear parts are arranged around the controller for easier inspection and servicing.
3.Major components are fully shared across tonnage models, reducing spare parts variety and after-sales inventory requirements.
1.Full-size entry handle is easy to reach for operators from 150–195 cm in height.
2.Right-hand hydraulic control levers are positioned within easy reach.
3.Small-diameter steering wheel with an upward-angled combination switch reduces hand effort.
4.Low-angle accelerator pedal helps reduce foot fatigue.
5.Metal anti-slip step improves safety when entering and exiting the truck.
6.Right-mounted, driver-facing instrument panel improves visibility.
7.Semi-enclosed OPS seat with a single armrest provides shock absorption and lumbar support.
1.Steering activation through the steering wheel makes operation easier in confined spaces.
2.Full LED lighting improves visibility during night operation.
3.Smart color display provides real-time vehicle information and warning alerts.
