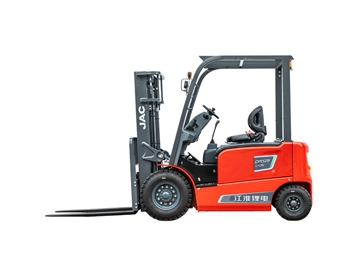

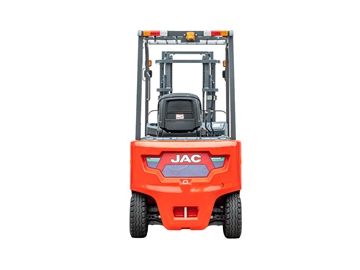

Electric Forklift (1.5-3.5T New Lithium-ion Wheel Forklift, L series)
| Item | Model | ||||||||||||
| Model | CPD15 | CPD18 | CPD15 | CPD18 | CPD20 | CPD25 | CPD20 | CPD25 | CPD30 | CPD35 | CPD30 | CPD35 | |
| Mode | POWERFUL | FUNCTIONAL | POWERFUL | FUNCTIONAL | POWERFUL | FUNCTIONAL | |||||||
| Features | Rated load (kg) | 1500 | 1800 | 1500 | 1800 | 2000 | 2500 | 2000 | 2500 | 3000 | 3500 | 3000 | 3500 |
| Load center distance (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Mast tilt angle (FR/RR) | 6/8 | 6/8 | 6/10 | 6/10 | 6/10 | 6/10 | |||||||
| Lift height (mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||||||
| Fork size L×W×T (mm) | 920×100×35 | 920×100×35 | 920×122×40 | 1070×122×40 | 920×122×40 | 1070×122×40 | 1070×125×45 | 1070×125×50 | 1070×125×45 | 1070×125×50 | |||
| Minimum turning radius (mm) | 2010 | 2010 | 2270*1.05 | 2137 | 2260 | 2275 | 2260 | 2275 | |||||
| Preformance | Maximum travel speed (full load/no load) (km/h) | 15/15 | 18/18 | 15/15 | 18/18 | 15/15 | 18/18 | ||||||
| Maximum lift speed (full load/no load) (mm/s) | 320/440 | 300/440 | 400/520 | 380/520 | 320/440 | 300/440 | 420/530 | 400/530 | 330/440 | 310/450 | 400/500 | 360/490 | |
| Maximum drawbar pull(full load/no load) (kN) | 10.2/9.7 | 10.2/9.8 | 12/10.7 | 12/11 | 13.6/13 | 14.5/13.5 | 14.5/14 | 15.5/14.5 | 16.5/16 | 17.5/17 | 19.5/17.5 | 20/18 | |
| Maximum gradeability (full load/no load) (%) | 17/27 | 15/26 | 20/27 | 18/26 | 17/26 | 15/25 | 22/26 | 20/25 | 17/26 | 15/23 | 20/26 | 18/25 | |
| Dimensions | Overall length (without forks) (mm) | 2197 | 2197 | 2438 | 2438 | 2555 | 2590 | 2555 | 2590 | ||||
| Overall width (mm) | 1120 | 1120 | 1180 | 1180 | 1260 | 1260 | |||||||
| Mast lowered height (mm) | 2010 | 2010 | 2000 | 2000 | 2075 | 2075 | |||||||
| Chassis | Front tire size (mm) | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-14PR | 7.00-12-14PR | 28*9-15-14PR | 28*9-15-14PR | ||||||
| Rear tire size (mm) | 16*6-8-10PR | 16*6-8-10PR | 18*7-8-14PR | 18*7-8-14PR | 200/50-10 | 200/50-10 | |||||||
| Wheelbase (mm) | 1475 | 1475 | 1660 | 1660 | 1750 | 1750 | |||||||
| Service weight (including battery/excluding battery) (kg) | 2840/2610 | 2955/2780 | 2850/2675 | 2965/2790 | 3520/3345 | 3850/3675 | 3530/3345 | 3860/3675 | 4535/4325 | 4845/4615 | 4550/4320 | 4860/4630 | |
Key Features
Ergonomic Layout – Operator-Friendly Design
1. Three-speed driving modes to suit various working conditions.
2. Automatic sleep mode after 30 minutes of inactivity for enhanced safety and energy savings.
3. Right-hand hydraulic control lever for reduced operator effort and improved comfort.
4. Extended entry handle design accommodates operators of all heights.
5. Optional reverse alarm, full LED lighting, and semi-enclosed OPS seat for safer operation.
6. Built-in cup holder, phone slot, and USB charging port for a convenient in-cabin experience.
7. Enlarged, anti-slip entry step for safer access.
8. Intelligent protection features: anti-rollback system, electrical overheating/short-circuit/low-battery protection, optional speed reduction system when cornering, and optional seatbelt reminder.
Layout – High Reliability & Maintainability
1. Integrated cast axle housing for high strength, with half-shaft oil seal to minimize leakage.
2. Tires with tread patterns reduce rolling resistance and enhance driving range.
3. Large-capacity hydraulic oil tank mounted on the outer frame for improved heat dissipation.
4. The pipeline uses 24° cone-seal fittings for reduced leakage.
5. High-mounted cast steering axle with tapered roller bearings for enhanced lateral stability and extended service life.
6. Battery heating system comes standard across all models—reliable operation even in cold climates.
7. One-piece overhead guard provides robust protection and structural integrity.
8. Pump motor placed on the left side of the battery allows for easy access and maintenance.
9. Controller mounted above counterweight ensures efficient heat dissipation; protective cover enhances water resistance.
10. Engine hood overlaps side panels, improving overall sealing.
11. The centrally positioned battery design boosts lateral stability.
