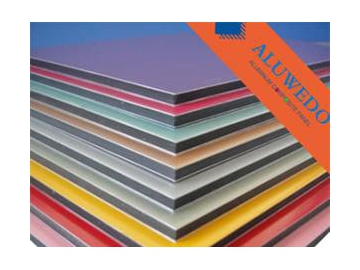

EVE Finish Aluminum Composite Panel
Application
EVE finish aluminum composite panel is quite suitable for the doors of chain stores, auto dealerships, petrol stations and many other places where colorful environment is a must. Our EVE finish aluminum composite panel not only enjoys an attractive appearance, but also a long service life.
Features
EVE finish aluminum composite panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm,1250mm,1500mm,1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115℃ |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strength | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
Description
EVE finish, mainly composed by high quality fluororesin, enjoys a 10~15 years' weather resistance, a bright color and high gloss effect. Though PE coating could also be applied for UV printing, EVE finished has a better weather resistance. Though fluorocarbon coating enjoys a 15-year guarantee for weather resistance as well, our EVE finish could be directly used for UV printing. EVE finish aluminum composite panel has long service life, high surface glossy effect, and is able to be coated into different colors.
Aluwedo is a reliable EVE finish aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality EVE glossy ACP composite panels with competitive prices.
