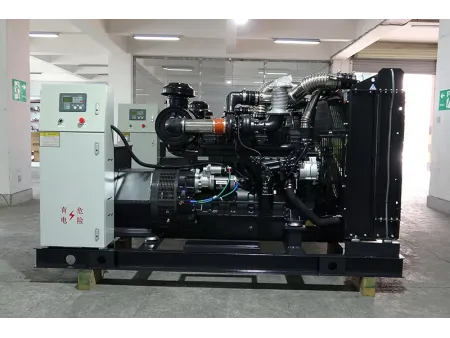

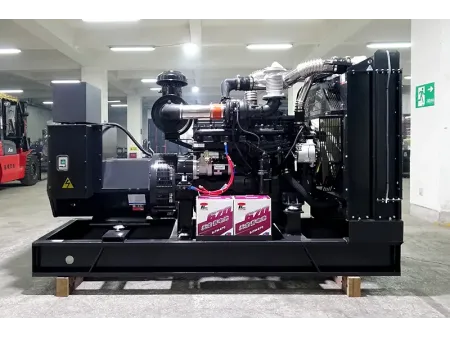

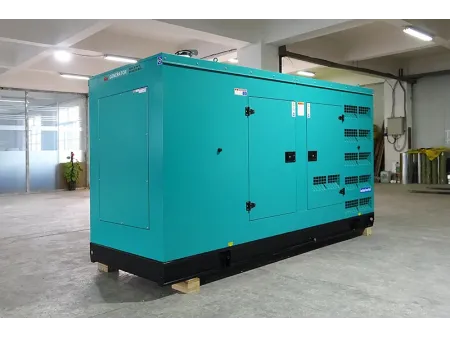

SDEC Engine Series

Powered by SDEC diesel engine

Our diesel generator sets serve as a premier solution for self-provided power stations, embodying the essence of compact, small to medium-sized independent power generation systems. These generators are distinguished by their compact design, small footprint, high thermal efficiency, rapid startup capabilities, and flexible control systems. They are particularly noted for their convenient fuel storage options.

SDEC, a leading diesel engine manufacturer in China, is renowned for its superior fuel economy, low vibration and noise levels, and substantial market share. These engines offer dual-frequency switching capabilities, providing exceptional cost-effectiveness and versatility. Below are the specifications for our 120-300KW SDEC engine series diesel generator sets.

120kW/150kVA

Diesel Generator Set with SDEC Engine, DB-120GF

  • Prime power: 120kW/150kVA
  • Standby power: 132kW/165kVA
  • Rated current: 216A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai 6HTAA6.5-G22
  • Alternator: Stamford/Leroy Somer/Engga (optional)

150kW/187.5kVA

Diesel Generator Set with SDEC Engine, DB-150GF

  • Prime power: 150kW/187.5kVA
  • Standby power: 165kW/206kVA
  • Rated current: 270A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai SC7H250D2
  • Alternator: Stamford/Leroy Somer/Engga (optional)

165kW/206kVA

Diesel Generator Set with SDEC Engine, DB-165GF

  • Prime power: 165kW/206kVA
  • Standby power: 180kW/225kVA
  • Rated current: 297A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai SC8D280D2
  • Alternator: Stamford/Leroy Somer/Engga (optional)

200kW/250kVA

Diesel Generator Set with SDEC Engine, DB-200GF

  • Prime power: 200kW/250kVA
  • Standby power: 220kW/275kVA
  • Rated current: 360A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai SC9D340D2
  • Alternator: Stamford/Leroy Somer/Engga (optional)

250kW/312.5kVA

Diesel Generator Set with SDEC Engine, DB-250GF

  • Prime power: 250kW/312.5kVA
  • Standby power: 275kW/344kVA
  • Rated current: 450A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai SC12E420D2
  • Alternator: Stamford/Leroy Somer/Engga (optional)

280kW/350kVA

Diesel Generator Set with SDEC Engine, DB-280GF

  • Prime power: 280kW/350kVA
  • Standby power: 308kW/385kVA
  • Rated current: 504A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai SC12E460D2
  • Alternator: Stamford/Leroy Somer/Engga (optional)

300kW/375kVA

Diesel Generator Set with SDEC Engine, DB-300GF

  • Prime power: 300kW/375kVA
  • Standby power: 330kW/413kVA
  • Rated current: 540A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Shangchai SC15G500D2
  • Alternator: Stamford/Leroy Somer/Engga (optional)
Speed: 1500rpmCylinders No. & Type: 6 cylinders, Inline, 4 stroke, diesel engine, water-cooled
