5086 Aluminum Alloy

Request a Quote

View All: http://aluminum-alloys.com/1-5-5-5086-aluminum-alloy.html

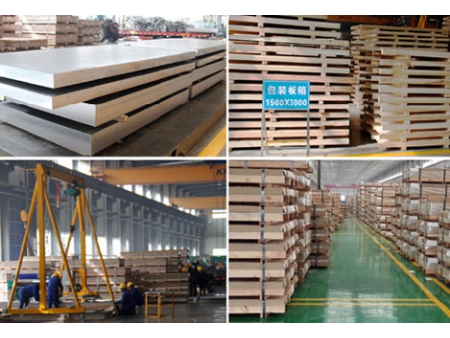

5086 aluminum sheets/plates available size range

Thickness: 0.2-200mm
Width: 30-2500mm
Length: 500-13000mm

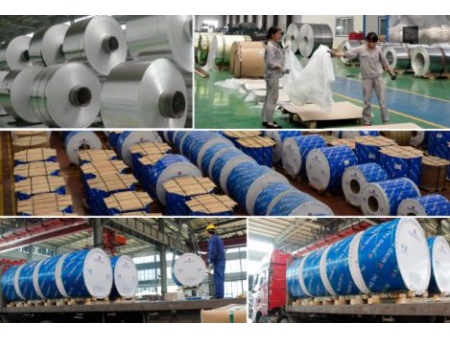

5086 aluminum coil available size range

Thickness: 0.2-6.35mm
Width: 500-2500mm

Application

5086 alloy is used in shipyards, marine components, military and defense applications (such as armor plating, tanks, armored personnel carriers, missile components), unfired and welded pressure vessels, auto aircraft cryogenics, TV towers, drilling rigs, transportation equipment, tanks and marine components.

Aluminum alloy state, size and mechanical properties

Alloy	Temper	Thickness (mm)	Tensile strength (Mpa)		Elongation (%)
Alloy	Temper	Thickness (mm)	Chinese standard	Value	Elongation (%)
5086	O H111	＞0.20-0.50	240-310	240-310	≥11
		＞0.5-1.50			≥12
		＞1.5-3.0			≥13
		＞3.0-6.0			≥15
		＞6.0-12.50			≥17
		＞12.5-150.0			-
	H22 H32	＞0.2-0.50	275-335	275-335	≥5
		＞0.5-1.50			≥6
		＞1.5-3.0			≥7
		＞3.0-6.0			≥8
	H24 H34	＞0.2-0.50	300-360	30-360	≥4
		＞0.5-1.50			≥5
		＞1.5-3.0			≥6
		＞3.0-6.0			≥7
	H26 H36	＞0.2-0.50	325-385	325-385	≥2
		＞0.5-1.50			≥3
		＞1.5-3.0			≥3
		＞3.0-4.0			≥3
	H112	＞6.0-12.5	≥250	≥250	≥8
		＞12.5-40.0	≥240	≥240	-
		＞40.0-80.0	≥240	≥240	-
	F	＞4.50-150	-	-	-
