Drum Screen Machine
Request a Quote
View All: http://fjlime.com

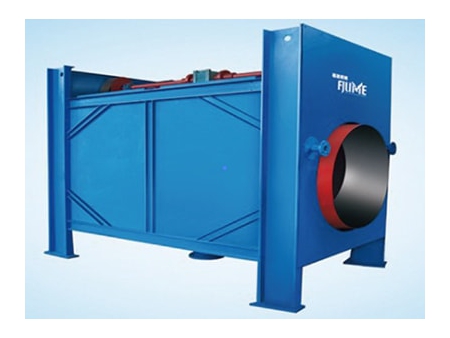

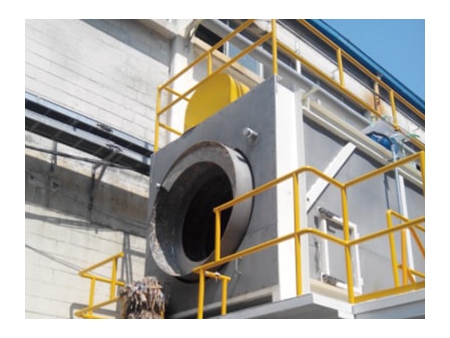

DrumScreen Machine
Our drum screen machine is usually used after MC pulperor impurity separator, to screen out some all kinds of impurities such asplastics, rubber, rocks, metals and film.
Structureand Features
Our ZST series drum screen machine is mainly composed of screen drum, vat,driving roller, inlet trough, and shower pipe. As thescreen drum rotates, the stock is pushed forward. Then accepts and smallimpurities will enter the stock vat by the force of gravity, while the largeimpurities will be discharged along the track of the screw board. The fiberadhered to the impurities is washed off by water spraying device to keep fiberloss to a minimum.
The drum screen is often used together with hydrapulperto screen out coarse impurities, improving the purifying efficiency of process.Due to our consistent focus on product improvement, our drum screen machine isof simple structure, safe operation and high screening efficiency.
Specifications of Drum Screen Machine
| Model | Production amount (m3/h) | Screen drum diameter(mm) | Screen hole diameter(mm) | Motor power(KW) |
| ZST0 | 30 | Ф800 | Ф8～Ф14 | 2.2 |
| ZST31 | 60 | Ф1000 | 4 | |
| ZST32 | 120 | Ф1250 | 7.5 | |
| ZST33 | 240 | Ф1500 | 11 | |
| ZST34 | 300 | Ф2000 | 11 |
