Grooved One-Stop Coupling

Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Grooved One-Stop Coupling
Request a Quote

Ductile iron grooved fittings

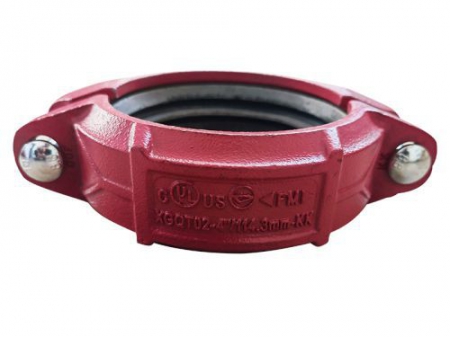

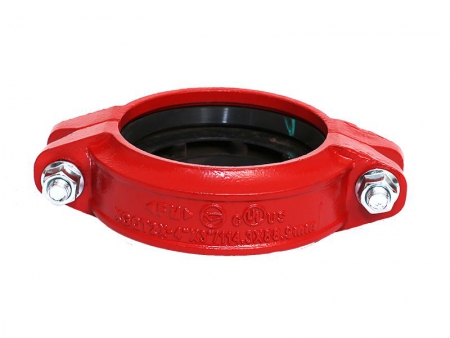

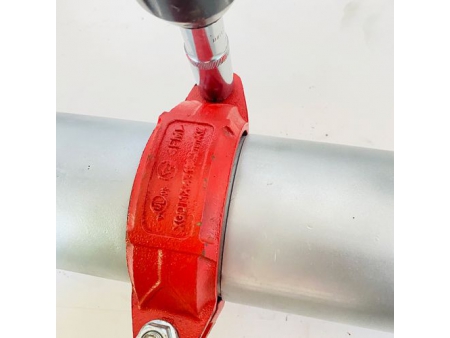

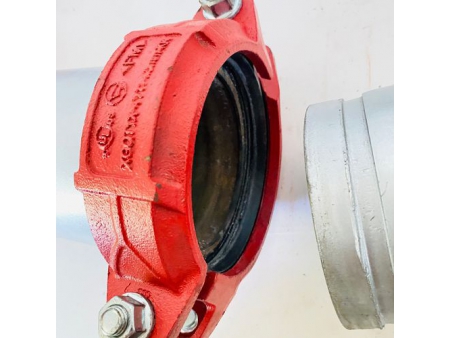

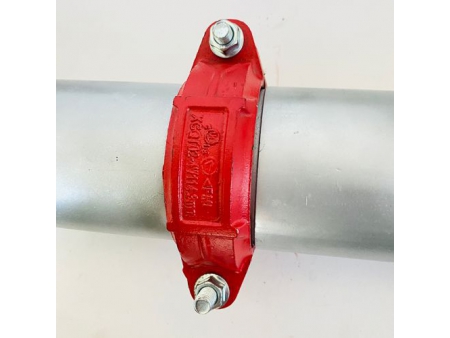

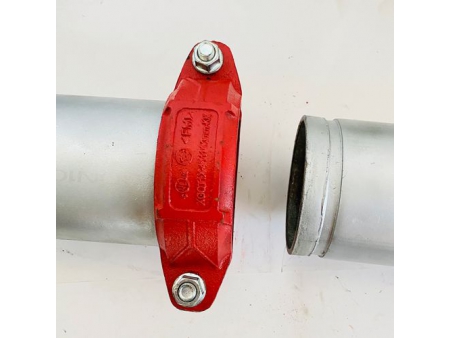

Grooved one-stop coupling is a type of rigid quick-change pipe fitting. With a unique structural design, it eliminates the need to disassemble bolts, nuts, and gasket during installation. The coupling can be directly inserted into the pipe end and tightened with bolts and nuts.

Features

The installation efficiency is more than three times that of standard couplings. The unique structural design prevents the loss of bolts and nuts during the installation process.

Recommended Applications

Grooved one-stop coupling is suitable for various types of pipes, such as water supply, drainage, HVAC systems, and other pipelines.

Key Specifications
  • Available sizes: 1~12 inch |DN25~DN300
  • Working pressure: 300PSI/2.07MPa
  • Certificate: FM/UL/CE certified
  • Coating: epoxy/galvanized
  • Color: red/orange/white, etc.
  • Material: ductile iron
Specifications

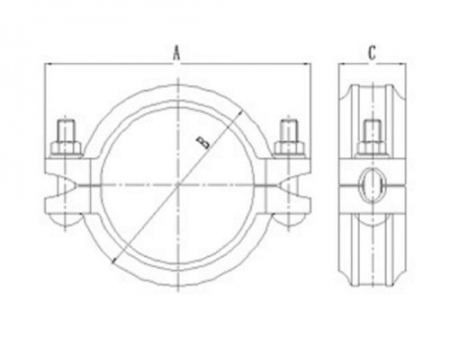

Nominal Size Pipe OD Dimensions Bolt Size
mm/in mm/in mm/in No.-Size / mm
A / mm B / mm C / mm
25 / 1 33.7 / 1.327 58 / 2.28 98 / 3.85 45 / 1.77 3/8*45-2
32 / 1 1/4 42.4 / 1.669 68 / 2.68 106 / 4.17 45 / 1.77 3/8*45-2
40 / 1 1/2 48.3 / 1.9 74 / 2.91 114 / 4.49 45 / 1.77 3/8*45-2
50 / 2 60.3 / 2.375 86 / 3.39 128 / 5.04 45 / 1.77 3/8*55-2
65 / 2 1/2 73 / 2.875 98 / 3.86 137 / 5.39 45 / 1.77 3/8*55-2
65 / 2 1/2 76.1 / 3 103 / 4.06 141 / 5.55 45 / 1.77 3/8*55-2
80 / 3 88.9 / 3.5 114 / 4.49 158 / 6.22 45 / 1.77 3/8*55-2
100 / 4 114.3 / 4.5 143 / 5.63 192 / 7.56 49 / 1.93 1/2*65-2
125 / 5 139.7 / 5.5 172 / 6.77 222 / 8.74 50 / 1.96 1/2*75-2
150 / 6 165.1 / 6.5 199 / 7.83 252 / 9.92 50 / 1.96 1/2*75-2
150 / 6 168.3 / 6.625 202 / 7.95 252 / 9.92 50 / 1.96 1/2*75-2
216 / 8 216.1 8.51 258 / 10.16 322 / 12.67 58 / 2.28 5/8*95-2
200 / 8 219.1 / 8.625 258 / 10.16 322 / 12.67 58 / 2.28 5/8*95-2
267 / 8 267.2 / 10.52 313 / 12.32 390 / 15.35 58 / 2.28 3/4*110-2
250 / 10 273 / 10.75 320 / 12.60 394 / 15.51 60 / 2.36 3/4*110-2
318 / 12 318.3 / 12.53 369 / 14.53 450 / 17.72 58 / 2.28 3/4*120-2
300 / 12 323.9 / 12.75 372 / 14.64 450 / 17.72 64 / 2.51 3/4*120-2
What problems can be solved by grooved piping systems?
Due to the advantages of grooved couplings, grooved piping systems can address complex installation issues, noise problems, and the negative effects of vibrations on pipelines. They also help reduce maintenance costs in the long run.
