Grooved Reducing Flexible Coupling
Request a Quote
Ductile iron grooved fittings

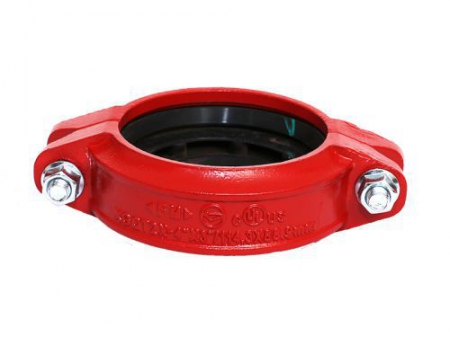

Grooved reducing flexible coupling is a pipe fitting made of ductile iron. It features a flat-bolted housing structure with a certain gap between the joint and the groove base, allowing for flexible connections and the ability to accommodate axial displacement and angular deflection. The grooved reducing flexible coupling can replace two separate couplings and one reducer fitting.
Recommended applications
Grooved reducing flexible coupling can be used for various pipelines, such as sewage pipes, water supply pipes, etc.
Key Specifications
- Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150
- Working pressure: 300PSI/2.07MPa
- Certificate: UL/CE certified
- Coating: epoxy/galvanized
- Color: red/orange/white, etc.
- Material: ductile iron

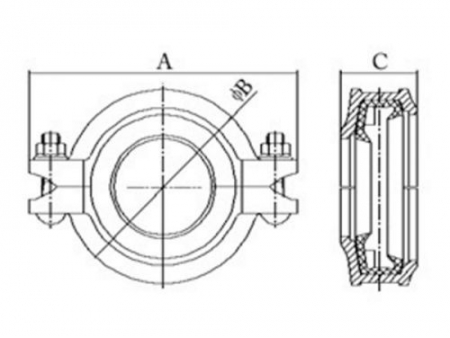

Specifications
Nominal Size | Pipe OD | Dimensions | Bolt Size | ||
mm/in | mm/in | mm/in | No.-Size mm | ||
A | B | C | |||
50x32 / 2x1 1/4 | 60.3x42.4 / 2.375x1.660 | 86 / 3.39 | 125 / 4.93 | 44 / 1.74 | 2-3/8x55 / 2-M10x57 |
50x40 / 2x1 1/2 | 60.3x48.3 / 2.375x1.900 | 86 / 3.39 | 125 / 4.93 | 44 / 1.74 | 2-3/8x55 / 2-M10x57 |
65x40 / 2 1/2x1 1/2 | 73.0 x 48.3 / 2.875x1.900 | 96 / 3.78 | 136 / 5.35 | 45 / 1.78 | 2-3/8x55 / 2-M10x57 |
65x50 / 2 1/2x2 | 73.0x60.3 / 2.875x2.375 | 96 / 3.78 | 136 / 5.35 | 45 / 1.78 | 2-3/8x55 / 2-M10x57 |
65x50 / 2 1/2x2 | 76.1 x60.3 / 3.000x2.375 | 102 / 4.02 | 140 / 5.51 | 45 / 1.78 | 2-3/8x55 / 2-M10x57 |
80x40 / 3x1 1/2 | 88.9x48.3 / 3.500x1.900 | 115 / 4.53 | 158 / 6.22 | 45 / 1.78 | 2-1/2x70 / 2-M12x70 |
80x50 / 3x2 | 88.9x60.3 3.500x2.375 | 115 / 4.53 | 158 / 6.22 | 45 / 1.78 | 2-1/2x70 / 2-M12x70 |
80x65 / 3x2 1/2 | 88.9x73.0 / 3.500x2.875 | 115 / 4.53 | 158 / 6.22 | 45 / 1.78 | 2-1/2x70 / 2-M12x70 |
80x65 / 3x2 1/2 | 88.9x76.1 / 3.500x3.000 | 115 / 4.53 | 158 / 6.22 | 45 / 1.78 | 2-1/2x70 / 2-M12x70 |
100x40 / 4 x1 1/2 | 114.3x48.3 / 4.500x1.900 | 142 / 5.59 | 192 / 7.56 | 50 / 1.97 | 2-1/2x70 / 2-M12x70 |
100x50 / 4x2 | 114.3x60.3 / 4.500x2.375 | 142 / 5.59 | 192 / 7.56 | 50 / 1.97 | 2-1/2x70 / 2-M12x70 |
100x65 / 4x2 1/2 | 114.3x73.0 / 4.500x2.875 | 142 / 5.59 | 192 / 7.56 | 50 / 1.97 | 2-1/2x70 / 2-M12x70 |
100x65 / 4x2 1/2 | 114.3x76.1 / 4.500x3.000 | 142 / 5.59 | 192 / 7.56 | 50 / 1.97 | 2-1/2x70 / 2-M12x70 |
100x80 / 4x3 | 114 3x88.9 / 4.500x3.500 | 142 / 5.59 | 192 / 7.56 | 50 / 1.97 | 2-1/2x70 / 2-M12x70 |
150x80 / 6x3 | 165.1x88.9 / 6.500x3.500 | 200 / 7.87 | 250 / 9.84 | 50 / 1.97 | 2-5/8x85 / 2-M16x85 |
150x100 / 6x4 | 165.1 x114.3 / 6.500x4.500 | 200 / 7.87 | 250 / 9.84 | 50 / 1.97 | 2-5/8x85 / 2-M 16x85 |
150x80 / 6x3 | 168.3x88.9 / 6.625x3.500 | 202.5 / 7.97 | 252 / 9.92 | 50 / 1.97 | 2-5/8x85 / 2-M16x85 |
150x 100 / 6x4 | 168.3 x 114.3 / 6.625x4.500 | 202.5 / 7.97 | 252 / 9.92 | 50 / 1.97 | 2-5/8x85 / 2-M16x85 |
200x150 / 8x6 | 219.1 x 165.1 / 8.625x6.500 | 257 / 10.12 | 322 / 12.68 | 56 / 2.2 | 2-3/4x115 / 2-M20x 115 |
200x150 / 8x6 | 219.1x168.3 / 8.625x6.625 | 257 / 10.12 | 322 / 12.68 | 56 / 2.2 | 2-3/4x115 / 2-M20x115 |
What are the advantages of grooved piping systems in the fire protection industry?
In the fire protection industry, especially in automatic fire sprinkler piping systems, grooved connections are commonly used. The biggest advantages of this type of connection are faster and more economical installation, higher reliability after installation, and lower maintenance costs.
What are the advantages of flexible coupling?
- Compared to traditional connection methods such as welding, threading, and soldering, flexible couplings offer faster and safer installation, and reduced cost.
- Unlike traditional pipe connection methods (such as welded or soldered joints), flexible couplings do not generate dust pollution or product contamination.
- Reducing flexible couplings can directly connect pipes of different sizes that allows for direct size reduction and eliminates the need for a reducer two separate couplings.
