To satisfy some of our clients using micro data centers, Sicon has launched Genius series micro data center solution to realize UPS system simple installation and flexible expansion.

The Genius micro data center solution is designed with a modular integrated structure, ensuring it is economic and environmental friendly, and helps our clients to achieve a fast installation, flexible expansion and superior operation efficiency. We have two different micro data center UPS systems available for customers according to different air conditioner unit locations.

Advantages
  • The modular UPS system supports hot swapping, and allows for easy modification while the system is running.
  • The system comes with a monitoring display system; all equipment information is easily managed via remote control or local control.
  • The UPS system features a closed enclosure to ensure a dust resistant and low noise performance
  • Emergency ventilation system allows for a consistent heat-dissipation.

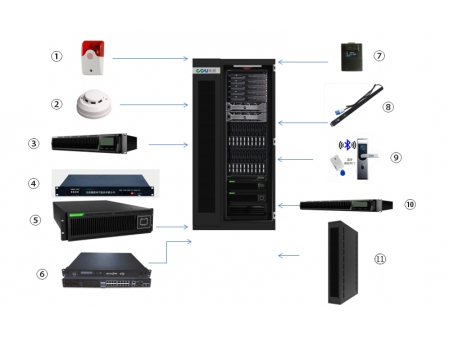

Genius micro data center UPS system
(Integrated air conditioner unit)
Configuration
  • ① Audible and visual alarm
  • ② Smoke detector (alarm)
  • ③ UPS
  • ④ Lithium-ion battery
  • ⑤ Lead-acid battery
  • ⑥ Monitoring main processor
  • ⑦ Temperature-humidity sensor
  • ⑧ PDU (Power Distribution Unit)
  • ⑨ Access control
  • ⑩ Direct-current power supply
  • ⑪ Air conditioner unit
Technical Parameters of UPS System
Model
Dimension 900*1200*2000
Color Standard black, or other custom colors
Ventilation Standard configuration
Available space 26U
Air conditioner unit
Power supply 220V 50HZ
Cooling capacity 3500W
Cold medium R410a
Structure Side-mount and integrated structure
Dimension 300*1200*2000
Communication port RS485
PDU (Power Distribution Unit)
Power supply 220V 50HZ
Power module 63A
UPS model DSP11-3KVA/6KVA
Communication power module Rack-mount, output voltage 48V, output current 40A (Assembly based on needs)
Power factor 0.9
Height 3U
Battery pack model DUP1204L6 (12V8AH, 12 batteries), Height: 3U
Dynamic environment monitoring system Temperature-humidity sensor, smoke sensor, waterproof, access control, power distribution, AC, UPS and etc. are group monitored or smartphone remote controlled
Fire safety Heptafluoropropane fire extinguishing device (selective assembly)

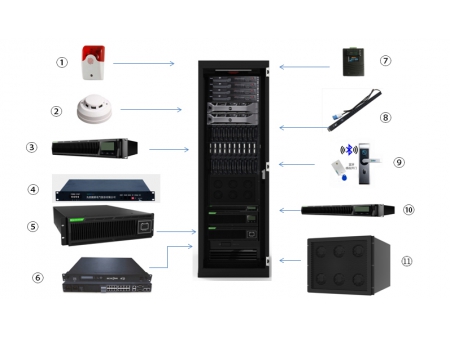

Genius micro data center UPS system
(Rack-mounted air conditioner unit)
Configuration
  • ① Audible and visual alarm
  • ② Smoke detector (alarm)
  • ③ UPS
  • ④ Lithium-ion battery
  • ⑤ Lead-acid battery
  • ⑥ Monitoring main processor
  • ⑦ Temperature-humidity sensor
  • ⑧ PDU (Power Distribution Unit)
  • ⑨ Access control
  • ⑩ Direct-current power supply
  • ⑪ Air conditioner unit
Technical Parameters
Model
Dimension 600*1200*2000
Color Standard black, or other custom colors
Ventilation Standard configuration
Available space 20U
Air conditioner unit
Power supply 220V50HZ
Cooling capacity 3500W
Cold medium R410a
Structure Rack-mounted and separated structure
Dimension 480*950*6U
Communication port RS485
PDU (Power Distribution Unit)
Power supply 220V50Hz
Power module 63A
UPS model DSP11-3kVA/6kVA
Communication power module Rack-mounted, output voltage 48V, output current40A (Assembly based on needs)
Power factor 0.9
Height 3U
Battery pack model DUP1204L6 (12V8AH, 12 batteries), Height:3U
Dynamic environment monitoring system Temperature-humidity sensor, smoke sensor, waterproof, access control, power distribution, AC, UPS and etc. are group monitored or smartphone remote controlled
Fire safety Heptafluoropropane fire extinguishing device (selective assembly)
