SCH-213 Handheld Water Sampler
SCH-213 handheld water sampler is an electric portable water sampler which can be used for outdoor sampling, online monitored sampling, environmental monitoring stations, water treatment and gas and liquid sampling, etc. It is often used for emergency monitoring and water sampling as a stratified water sampler and portable water sampler.
Parameters| Size | 440(L) x 300(W) x 185(H) mm |
| Weight | 5.8kg |
| Peristaltic pump flow | 2600ml/min |
| Hardness of pump tube | Shore hardness 50A |
| Pump tube material | Silicone rubber 24# (inner diameter 6.4mm) |
| Repeat sampling accuracy | ±5ml |
| Vertical head | 8m |
| Maximum torque | 50 N.m |
| Max. suction vacuum | 0.07Mpa (7m H20) |
| Pump discharge pressure | 0.14Mpa (14m H20) |
| Battery voltage | 20V |
| Battery capacity | 1.5Ah |
| Power supply | AC220V50/60Hz (optional: AC110V50/60Hz) |
| Working temperature | 0°C ~ 40°C |
Sampling method
Features
1.SCH-213 handheld water sampler can realize cross-contamination-free sampling so that it can be used to collect medical-level samples.
2.This electric water sampler can carry out stratified water sampling. The suction head can be up to 8 meters.
3.It is only 5.8kg and can be equipped with rechargeable lithium battery.
Application
The portable sampler is suitable for situations in which there’s no power supply, such as river, lake, third-party testing, environmental monitoring, emergency sampling, on-site sampling, etc.
Optional Units

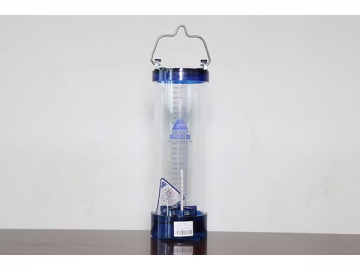

1.DN-100 water sampling bottle kit
2.Specification: 500ml x 12 bottles or 1000ml x 12 bottles
3.Application: can be matched freely with any type of water sampler
