F8 Handheld Homogenizer
Laboratory portable rotor-stator homogenizer for dispersion, emulsification and homogenization

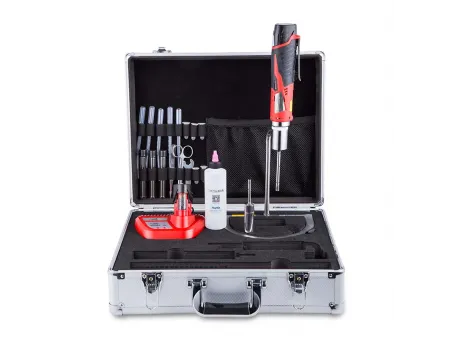

This is a portable laboratory homogenizer equipped with a high-speed motor (lithium battery-powered) and precision probes. It also includes other essential accessories such as medical scissors, tissue forceps, pipettes, centrifuge tubes, and sampling bottles. This handheld homogenizer is ideal for tasks like animal and plant tissue disruption, homogenization, medical diagnostics, micro-dispersion emulsification, etc.
- Charger input voltage 220-240V, 50-60 Hz
- Charger outputvoltage 12V DC, 3A
- Capacity of lithium battery (Ah) 2
- Mixing capacity (H₂O) (ml) 0.1-60
| Model | F8 |
| Power supply | 12V DC rechargeable lithium battery |
| Charger input voltage | 220-240V, 50-60 Hz |
| Charger outputvoltage | 12V DC, 3A |
| Capacity of lithium battery (Ah) | 2 |
| Mixing capacity (H₂O) (ml) | 0.1-60 |
| Max. viscosity (cP) | 100 |
| Charge time (h) | ≤1 |
| Continuous working time (h) | ≤1h (H₂O) |
| Speed range (rpm) | 0-25000 |
| Speed control | Stepless speed regulation |
| Indicator light | Yes |
| Medium-contact material | SS316L |
| Stirring shaft material | PTFE |
| Standard dispersing tool | 6GZL-1, 8GZL-1 |
| Allowable ambient temperature (℃) | 5 to 40 |
| Allowable relative humidity (%) | 80 |
| Operaiton mode | Micro batch processing |
| Stand/charger/spare lithium battery | Standard |
| Homogenizer dimensions (with dispersing tool) (mm) | 375×65×50 |
| Carrying case dimensions (mm) | 475×400×150 |
| Homogenizer weight (with dispersing tool) (kg) | ≤1 |
| Packaging weight (kg) | ≤6.5 |
| Packaging | Aluminum carrying case |
The handheld homogenizer works by drawing liquid samples into the generator probe equipped with a rotor that can spin at different speeds. The sample is then pushed through slots in the stator, creating mechanical shear. As the sample is repeatedly drawn in and forced through the stator, going through the shear process multiple times, resulting in complete homogenization into a uniform mixture within 30 seconds or less for most samples.
The homogenizer is equipped with a high-quality stainless steel dispersing head and a high-efficiency motor. Its height and angle are also adjustable for versatile use in outdoor or laboratory operations.
The handheld homogenizer is suitable for a wide range of applications, including biopharmaceuticals, genetic research, tissue disruption, cell lysis, pathological analysis, oil-water emulsification, nano-material dispersion, dairy homogenization, polymerization, cosmetics, fine chemicals, pesticides, mineral exploration, environmental protection, etc.
