Hot melt coating and laminating machine

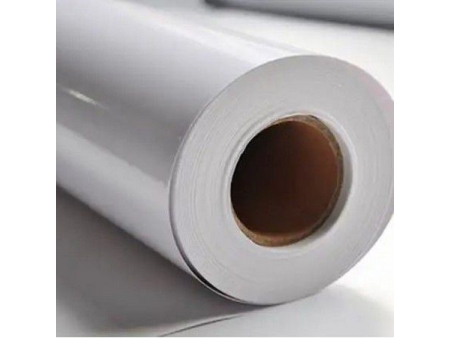

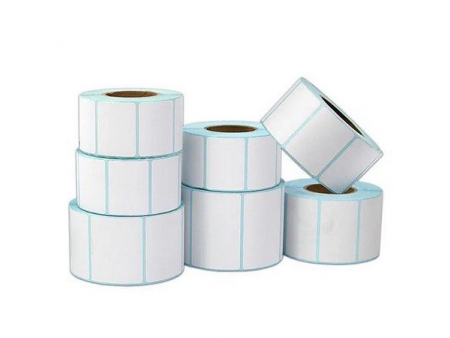

JYT-GB high speed hot melt adhesive coater, equipped with a PLC touchscreen automatic centralized control system, allows for single-person operation, which helps saving labor costs. An automatic constant tension control system ensures neat and flat material winding, while multi-layer filtration technology enhances the aesthetic effect of glue application. Ideal for producing self-adhesive label paper, various adhesive tapes, advertising photographic supplies, etc. Standard configuration includes slot-die coating set, while scratch-resistant coating set is available upon customer request.

Specifications
Model JYT-GB
Coating Width 400-2000mm
Coating Weight 10-200g/m²
Coating Speed 200 m/min
Unwind Diameter 1000mm
Rewind Diameter 1000mm
Web Guide System 2 sets
Length 12000mm
Height 2600mm
Power 38-60kW
Power Supply 380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • PLC touchscreen automatic centralized control system, realizing single-person operation.
  • Pneumatic feeding device ensures easy material connection and flat joining position, enabling non-stop operation.
  • Neat and flat material winding is ensured with automatic constant tension control system complemented by center-surface rolling technique.
  • Multi-layer filtration technology is employed in the filters, enhancing the aesthetic effect of adhesive application.
  • High-precision, wear-resistant alloy steel applicator head ensures optimal coating effects during high-speed applicating.
  • Standard configuration includes slot-die coating set, while scratch-resistant coating set is available upon customer request.
