, PLD 63 Series

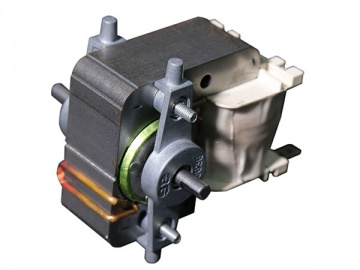

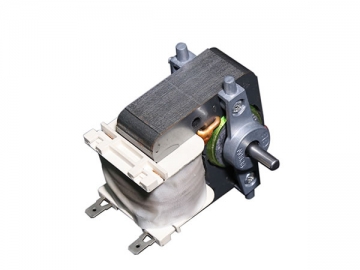

PLD 63 series shaded pole motors are produced at an annual capacity of 200 thousand sets in Lepuda. Each of the components for every motor is strictly detected to make sure that there is no defect. PLD 63 series are mostly used for medical nebulizer. If you are seeking a motor for low-power application, it is an ideal choice.
Model: PLD63-20 /25/30/35
Stator thickness; 20/25/30/35mm
Direction of rotation: CW/CCW
Bearing: roller bearing, with a service life of over 5000 hours
Shaft diameter: 5/6mm
Enameled wire: copper
Insulation class: A/E/B/F/H
Material of stator: silicon steel
Exported to: Germany, Italy, Korea, etc
Minimum order: 2000 PCS
Standards: ISO9000，CCC
| Model | Voltage (V) | Frequency (Hz) | Maximum Torque (g.cm) | Maximum Input Power (W) | Maximum Output Power (W) |
| 100-240 | 50/60 | 500 | 60 | 16 | |
| 100-240 | 50/60 | 650 | 80 | 18 | |
| 100-240 | 50/60 | 800 | 100 | 20 |
