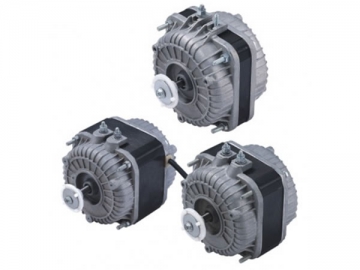

PLD 84 Series
Request a Quote
View All: http://fsmicromotor.com
, PLD 84 Series
Our PLD 84 series shaded pole motors are found to be popular in many countries like Russia, Indonesia, Italy and so on. Annually about 200 thousand sets of PLD 84 series motors are produced in Lepuda. You will find them perfectly applied in refrigerator, industrial fans, and many other low-consumption fields.
Model: PLD84-12/20/25/30/
Stator thickness: 12/25/30/35mm
Direction of rotation: CW/CCW (clockwise/counterclockwise)
Bearings: oil bearings/ roller bearings
Shaft diameter: 5/6mm
Enameled wire: copper/ copper-clad aluminum
Insulation class: A/E/B/F/H
Material of stator: silicon steel
Minimum order: 2000PCS/Mode
Standards: ISO9000, CCC
| Model | Voltage (V) | Frequency (Hz) | Maximum Torque (g.cm) | Maximum Input Power (W) | Maximum Output Power (W) |
| 100-240 | 50/60 | 400 | 35 | 7 | |
| 100-240 | 50/60 | 500 | 55 | 11 | |
| 100-240 | 50/60 | 700 | 75 | 15 | |
| 100-240 | 50/60 | 1000 | 120 | 24 |
