PLD 60 Series

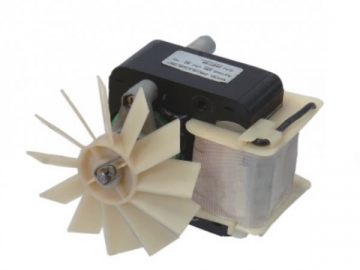

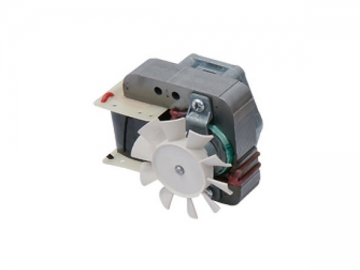

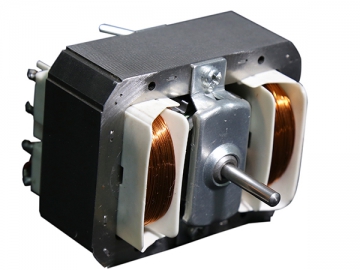

PLD 60 series shaded pole motor is available in external and internal rotor designs. It features two-pole construction, easy and robust design. Every year about 500 thousand sets of PLD 60 series shaded pole motor are produced and exported to South America, where they are found large popularity for their high price-performance ratio. Both oil bearings and roller bearings that used on motors are available for you to choose. PLD 60 series is mostly suitable for small fans and blower applications such as heater, hand dryer, hair dryer, refrigeration and ventilation products, etc.
Model: PLD60-12 /16/20/25/30
Direction of Rotation: CW/CCW (clockwise/counterclockwise)
Shaft diameter: 4/5/6mm
Enameled wire: copper
Insulation class: A/E/B/F/H
Material of stator: silicon steel
Exported to: Middle East, Europe, Southeast Asia
Minimum order: 2000 PCS
Standard: ISO9000, CCC
| Model | Voltage (V) | Frequency (Hz) | Maximum Input Power (W) | Maximum Rotating Speed (RPM) |
| 110 | 60 | 20 | 1000 | |
| 220 | 50 | 20 | 1000 | |
| 110 | 60 | 35 | 1300 | |
| 220 | 50 | 35 | 1300 | |
| 110 | 60 | 45 | 1500 | |
| 220 | 50 | 45 | 1500 | |
| 110 | 60 | 53 | 1500 | |
| 220 | 50 | 53 | 1500 |
