Vertical Form Fill Seal Machine with Large Bucket Chain Conveyor
Request a Quote
Application
- This vertical form fill seal machine is ideal for a variety of irregular or fragile products, granules, stripes, bulk goods and products requiring high measurement precision, including puffed food, chips, dry fruits, peanuts, seeds, candies, cookies, beans, and more.
Features
- Reasonable design, user friendly operation system, stable performance, low noise, easy maintenance, bucket chain conveyor.
- Manual material loading and measurement. The bucket chain conveyor feeding method is convenient for putting lucky draw coupons into the bag and simultaneous packaging of multiple materials. Empty bag filling can be avoided when there are no materials to pack. This ensures less power loss and a higher yield rate.
Machine set: VFFS machine, large bucket chain conveyor, finished bag conveyor
Packaging machine
- The packaging machine is controlled by a Panasonic servo motor with a single/double film drawing system used to ensure the film transporting stability and bag forming smoothness.

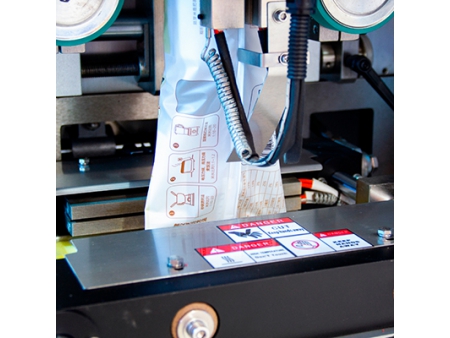

- An SMC/Airtac air cylinder helps to improve bag sealing property, prevent leaks and reduce failure rate.

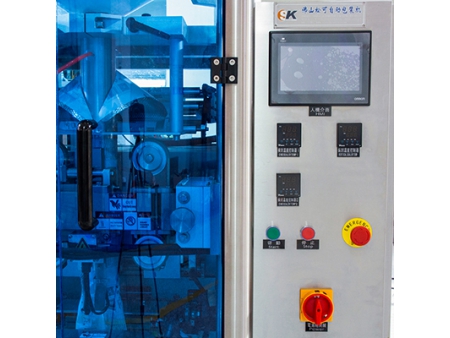

- PLC control, Panoramic driver and Wienview highly sensitive touch screen feature simple operations and high degree of automation as well as an easy HMI.
- The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, and more.

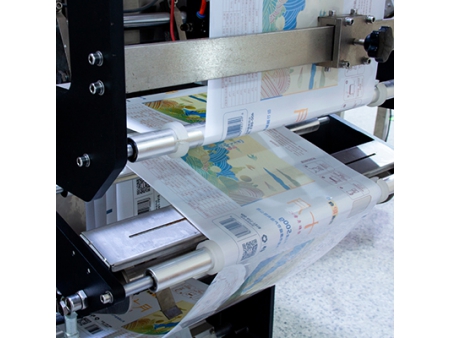

- External film unwind apparatus simplifies film changeovers.
- A standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.
Bucket chain conveyor feeder
- Manual feeding and measurement facilitate the release of lucky draw coupons or prizes. Multiple materials can be also put in one time.
- The function of putting serval small packets into a larger packaging bag is available.
- The machine will stop filling when the material runs out, thus reducing production loss.
- The bucket chain conveyor can be customized according to the customer's requirements.
Packaged bag conveyor
- Driven by micro motors, the finished bags are conveyed to a platform with a lower noise and smoother transmission.
- Belt transportation. Standard height: 1200mm.
- Customized service from design to production is available based on on-site investigation conditions.You can choose PVC belt, stainless steel chains or PVC chains as your conveyor.
- The conveying capacity is up to 60-80 bags per minute.
Specifications
| Model | ||||||||
| Bag width range | 50-180mm | 80-200mm | 80-200mm | 100-250mm | 150-300 mm | 180-350 mm | 200-400 mm | 200-500mm |
| Bag length range | 80-240mm | 80-300mm | 80-300mm | 80-350mm | 100-400 mm | 100-500 mm | 100-600 mm | 100-700mm |
| Speed | 5-85bags/min | 5-80bags/min | 5-80bags/min | 5-70bags/min | 5-55 bags/min | 5-55 bags/min | 5-50 bags/min | 5-50 bags/min |
| Material type | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. |
| Machine dimension | L1200 * W820 * H1350mm | L1100 * W925* H1650mm | L1450 * W1000 * H1650mm | L1430 * W1200 * H1700mm | L1780* W1300 * H1950 mm | L1800 * W1310 * H2050 mm | L1950* W1460 * H2550 mm | L2010* W1660 * H2750 mm |
| Machine weight | 350kg | 450kg | 500kg | 650kg | 700kg | 750kg | 800kg | 850kg |
If you are interested in our vertical form fill seal machine with a large bucket chain conveyor, please feel free to contact us for more information.
