Fully Automatic Vertical Form Fill Seal Machine with Multihead Weigher Manufacturer

Fully Automatic Vertical Form Fill Seal Machine with Multihead Weigher

Request a Quote

View All: http://packaging-provider.com/1-3-5-multi-head-weigher-vffs-bagging-machine.html

Features

Concise and reasonable machine design.
Suitable for those clients whose factory has height limit or whose products require high measurement precision.
Integration of product feeding, weighing, filling, sealing, cutting, printing and packaged bag transporting.

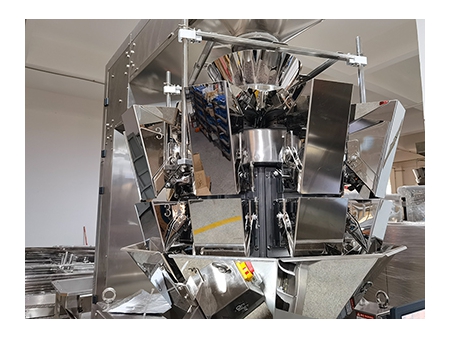

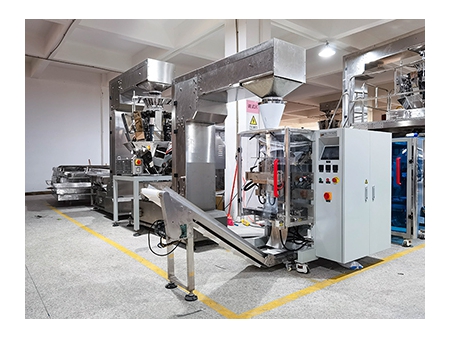

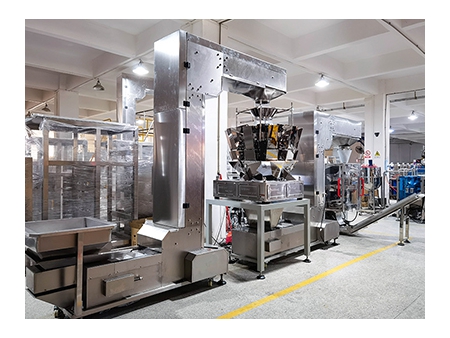

Machine set: SK-L420 packaging machine, Z type product elevator, 10-head weigher, packaged bag conveyor, supporting platform.

Application

Ideal for a variety of irregular or fragile products, granules, stripes, bulk goods and products requiring high measurement precision, including puffed food, chips, dry fruits, peanuts, seeds, candies, cookies, beans, etc.

Specifications

Model	SK-L380DL-FT	SK-L420DL-FT	SK-L420-FT	SK-L520-FT	SK-L620-FT	SK-L720-FT	SK-L820-FT
Dispensing capacity	30-500g	50-1000g	100-1000g	100-2000g	500-3000g	500-5000g	800-10000g
Bag width range	50-180mm	80-200mm	80-200mm	100-250mm	150-300 mm	180-350 mm	200-400 mm
Bag length range	80-240mm	80-300mm	80-300mm	80-350mm	100-400 mm	100-500 mm	200-600 mm
Speed	5-85bags/min	5-80bags/min		5-70bags/min	5-55 bags/min		5-50 bags/min
Material type	PE, laminations, non-woven fabric, etc.
Packaging machine dimensions	L1200* W820 * H1350mm	L1100 * W925 * H1650mm	L1450* W1200 * H1650mm	L1430* W1200 * H1700mm	L1780* W1300 * H1950 mm	L1800 * W1310 * H2050mm	L1950 * W1460* H2550mm
Packaging machine weight	350kg	450kg	500kg	650kg	700kg	750kg	800kg
Packaged wood cases	5 cases/5-6 m³	5 cases/6-7 m³	5 cases/6-7 m³	5 cases/7-8 m³	5 cases/8-9 m³	5 cases/8-9 m³	5 cases/9-10 m³

If you are interested in this semi-automatic vertical form fill seal machine with multihead weigher, welcome to contact us!
