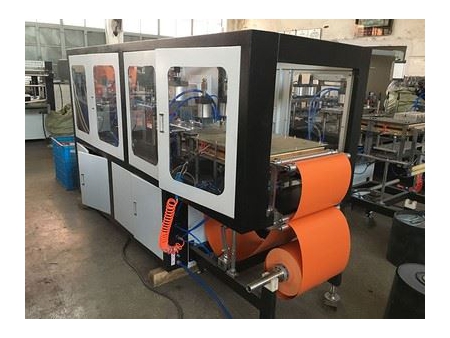

Plastic Lids Making Machine, HLD-450Z
Request a Quote
Plastic lids forming machine is to form different shapes of plastic covers for paper cups. This machine is applicable for the material such as HIPS, PVC, PET, PS, and some others.
Features
- The plastic lids making machine HLD-450Z comes with servo motors and touch screen.
- The material unwinding, forming, punching, cutting, and rewinding can be completed synchronously.
- Controlled by servo motor, the plastic lids forming machine is designed in compact structure for stable and simple operation.
- Thanks to the special material feeding device, the plastic lids making machine consumes less power, which is just twentieth that of the common cup lids forming machine. In the meanwhile, one-fifth of the raw material can be saved, as well.
- By virtue of the adjustable stroke and the replaceable mould, our plastic lids making equipment can be used for manufacturing the cup lids in varied specifications.
- The plastic lids making machine is constructed with PLC, HMI, stepless variable frequency speed controller, and the PC circuit control panel.
Specification
| Cutting Frequency | 15-45(times/min) |
| Power Supply | 380V/220V/50Hz |
| Stroke Adjustable Range | 0-260mm |
| Max. Forming Depth | 45mm |
| Max. Forming Area | 450×260mm |
| Motor Power | 2.2kW |
| Air Consumption | >0.2m³/min |
| Air Pressure | 0.4-0.7MPa |
| Machine Dimension | 2500×1000×1600mm |
| Weight | 1300kg |
