Chip Spreader

Introduction of Chip Spreader
Chip spreader is a kind of chipping machine. It is applicable for spreading chips in the construction of asphalt pavement.
Metong's SS-3100 chip spreader product is small handy chip spreading equipment manufactured particularly for maintenance and renovation of roads at the early stages of deterioration. This equipment has been developed at having knowledge that constructed road projects and any highways are prone to deterioration due to weather influences and by moving vehicles. It has a width of 200~3100mm spreading capabilities and is usually fixed in dumper and driven hydraulically by truck. It is suitable for asphalt pavement construction over roads.

Features of Chip Spreader
1. The engine of chip spreader is of high economical advantages as it is powered by diesel engine and is an advantage of minimizing operational cost.
2. A single one foot power gates enables the hopper a multi-functional and in maximizing the output. Main fittings include high quality components like conveyor belts, container, hydrostatic drive, planetary axle, etc.
3. Chip spreader has a greater flexibility beyond construction locations as it's small in size. Chips can be evenly sprayed at faster rate because of its adjustable spreading sizes with less temperature, wind and dust influences.

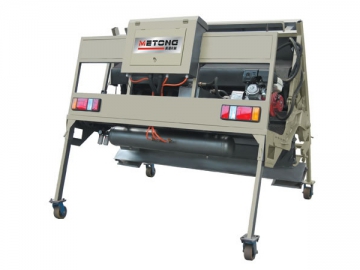

SS-3100 Hanging-type Chip Spreader

Introduction of SS-3100 Hanging-type Chip Spreader
SS-3100 hanging-type chip spreaders are innovated and improved on the basis of their counterparts in the current market. Our companies three patent technologies are used in SS-3100 chip spreaders:
1. the evenness of chip spreading
2. the convenience of suspension, assembly and disassembly
3. the convenience and reliability of controlling operation

The spreading width is adjustable: spreading width: 3100mm; dimension: 2000*2500*1900mm; weight: 1150kg.
Eighty percent components of our chip spreader are imported from German and Japan, so that its efficiency in chip spreading can be guaranteed. It wins great acclaim since it was launched.

Features of SS-3100 Hanging-type Chip Spreader
1. SS－3100 chip spreader is suitable for spreading aggregates, stone powders, chips, coarse sand, gravels and asphalt in the manner of surface dressing and penetration, so as to construct the prime coat, lower seal coat, chip seal coat and micro-surface.
2. SS－3100 chip spreader can be equipped in various small sized machinery with mechanical-electric-hydraulic integration.
3. It is of small dynamic hydraulic installation, compact structure, easy operation and convenient assembly. After operation, the machine should be dismantled, but the automatic disassembly function will restore soon.
4. The maximum width of SS－3100 chip spreader is 3100mm while the minimum is 200mm.
5. It has several radial gates with open and closed cylinders controlled by electricity. The relative gates can be opened according to construction requirement, so as to adjust the width and location of gravel spreading.
6. The height of a cylinder-control positioning bar should be used to limit the maximum width of each radial gate. As a result, the thickness of chip spreading layer can be adjusted.

Parameters of Chip Spreader

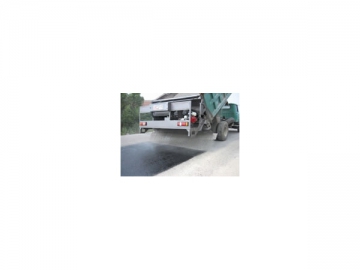

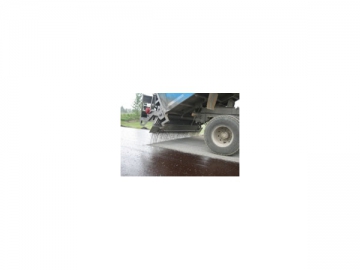

Construction Pictures of Chip Spreaders on Shanghai, Jiangsu, Zhejiang and Anhui Highways

We are a professional chip spreader manufacturer in China. We are engaged in producing and selling micro-surfacing, asphalt distributor, asphalt tank trailer, road maintenance truck, rubber asphalt plant and other pavement machinery, and have received ISO9001 certification. With advanced technology, excellent quality and reasonable prices, our chip spreaders and other pavement machinery are popular with customers in more than forty countries, such as China, Russia, Mongolia, Philippines, Chile and Nigeria. If you are in need of such kind of road equipment, please contact us.
