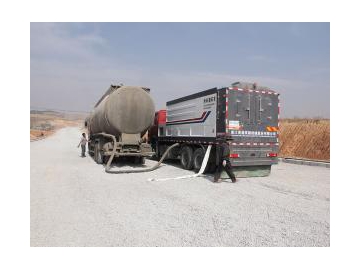

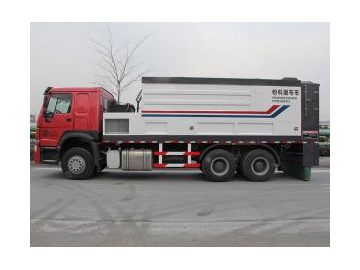

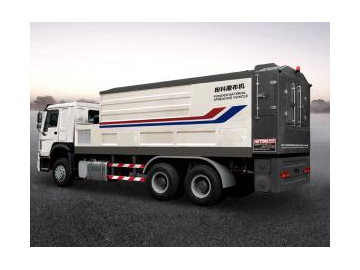

Binding Agent Spreader, Cement Spreader
This binding agent spreader is used to spread cement for cold recycling roads and spread stabilized soil adhesives for roadbeds. These spreading vehicles can also be used to spread cement, lime powder, fly ash and other materials.
Features of Binding Agent Spreader
1.The binding agent spreader can be fed either through a feed port or a man hole.
2.The spreading process is automatically controlled, and a change in the vehicle's speed will not change the spreading volume.
3.This binding agent spreader uses a bag filter and cover to avoid the spreading of dust, making it environmentally friendly.
4.The rotation speed of the feedings crew, discharging screw and spreading roller can all be controlled, guaranteeing the spreading volume.
5.Only one vehicle driver is needed for the spreading process.
6.A powder silo and discharging silo are both equipped with an alarm device, which will be armed either when the silos are full or lack material.
7.Construction parameters can be shown and saved for later use.
8.The spreading width of our binding agent spreader is either 2500mm, 1670mm, and 835 mm.
| LMT5250FSB | |
| Chassis | ZZ1257N4647D1 |
| Engine | D10.34-40 |
| Rated power (kW) | 249/1900 |
| Wheelbase (mm) | 4600 1350 |
| Maximum spreading width (mm) | 2500 |
| Spreading density (Kg/m2) | 5--40 |
| Spreading tank volume(m3) | 16 |
| Working speed (km/h) | 2.38 |
| Dimension (mm) | 9020x2500x3950 |
-
-

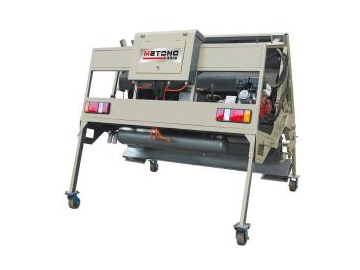

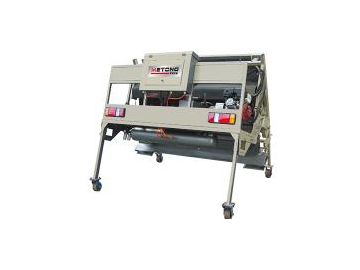

- The chip spreader has 10 gates. Each gate is controlled by the independent cylinder while every cylinder is controlled by the independent on-off switch. The on-off switch could indirectly control the gate through controlling the cylinder.
-
-

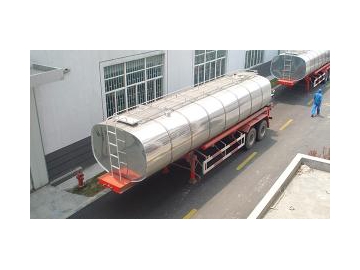

- Based on the study of other like products, we developed LMT9200GLB, LMT9250GLB, LMT9300GLQB and LMT9450GLB asphalt transport tanks to meet the needs of transporting asphalt during the construction.
