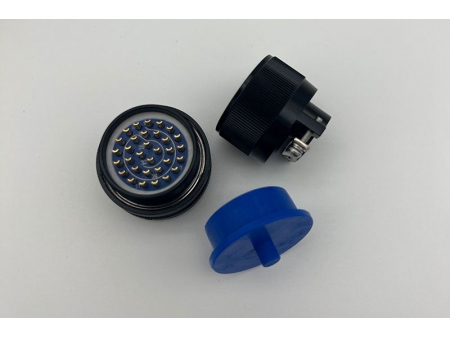

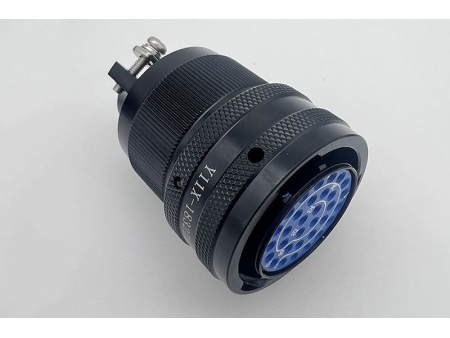

Circular Connectors
Featuring a bayonet coupling mechanism, our Y11 series connectors offer seamless and secure locking. The contact elements are welded, ensuring robust performance. With both shielded and unshielded shell options available, our connectors provide versatility to meet diverse requirements. Furthermore, they are designed to withstand various environmental challenges, including high vacuum, high pressure, salt spray, rain, and dust.
Our Y11 series connectors comply with the stringent GJB101A-97 standards, guaranteeing superior quality and reliability. They are also fully interchangeable with other YL11 connectors, ensuring hassle-free compatibility.
Our Y11 series connectors find wide-ranging applications in critical industries, including strategic weapon systems, aerospace satellite systems, aviation and maritime transportation vehicles, ground-based transmission and reception systems, high-energy and high-temperature industrial systems, communication and testing systems, and infrastructure and power systems.
- Operating Temperature: -55°C to 125°C
- Relative Humidity: Up to 95% at 40°C
- Operating Altitude: Up to 30,000m above sea level
- Vibration Resistance: Frequency range 10Hz to 2000Hz, acceleration 196m/s²
- Shock Resistance: Acceleration 490m/s²
- Air Tightness: Withstands a pressure of 0.2Mpa (for sealed socket)
- Shell Material: High-strength aluminum alloy and copper alloy materials
- Non-shielded coating: Anodizing colors
- Shielded coating: Chemical nickel plating
- Insulator: Heat-resistant thermoplastic material
- Sealing material: Silicone rubber
- Contacts: Copper alloy
- Plating: Gold
- Mechanical lifespan: 500 cycles
| Working Environment | Rated Voltage (V) | Withstanding Voltage (V) | Insulation Resistance (mΩ) |
| Ambient Temperature and Pressure | 500 | 1500 | ≥30000 |
| Damp-Heat | 500 | 500 | ≥20 |
| High Temperature | 250 | ---- | ≥500 |
| Low Pressure (1kpa) | 150 | 200 | ---- |
| Diameter (mm) | Resistance (mΩ) | Current (A) |
| Ø1.0 | ≤5 | 5 |
| Ø1.5 | ≤3 | 10 |
- Shell-to-shell electrical continuity: ≤200 mΩ
- Shield-to-shell electrical continuity: ≤5 mΩ
- Minimum attenuation of 45dB at 8000MHz
