Heavy Duty Connectors

Request a Quote

View All: http://moldingmachinepart.com/12-heavy-duty-connectors.html

Heavy duty connectors, also called high current connectors, are mainly used for connecting high current loads and cables.

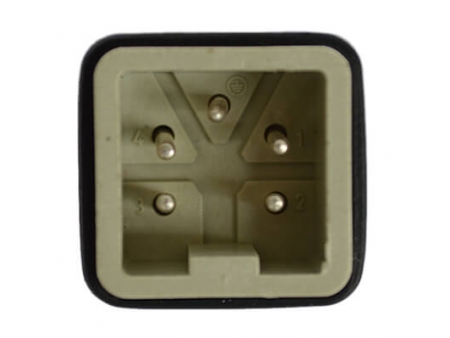

5 pin connector Rated current: 10A Rated voltage: 230V Rated impulse voltage: 4KV Working temperature range: -40℃- 125℃ Contact pin material: copper alloy Pin coating: silver Connection method: screwed connection Plastic material: PC Insulation resistance: ≥10 MΩ	HA-004-F HA-004-M	HA-004-TE-PG11 HA-004-BK

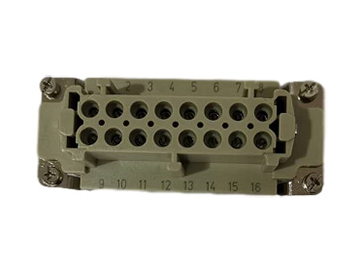

16 pin connector Rated current: 10A Rated voltage: 250V Rated impulse voltage: 4KV Working temperature range: -40℃- 125℃ Contact pin material: copper alloy Pin coating: silver Connection method: screwed connection Plastic material: PC Insulation resistance: ≥10 MΩ	HA-16-F HA-16-M	HA-16TE-PG16 HA-16-BK1
10 pin connector Rated current: 16A Rated voltage: 500V Rated impulse voltage: 4KV Working temperature range: -40℃- 125℃ Contact pin material: copper alloy Pin coating: silver Connection method: screwed connection Plastic material: PC Insulation resistance: ≥10 MΩ	HE-10-F YK-10-M	HE-10-TE4-PG29 HE-10-BK2 HE-10-TE2-PG29 HE-10-BK1

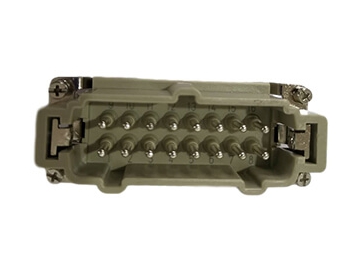

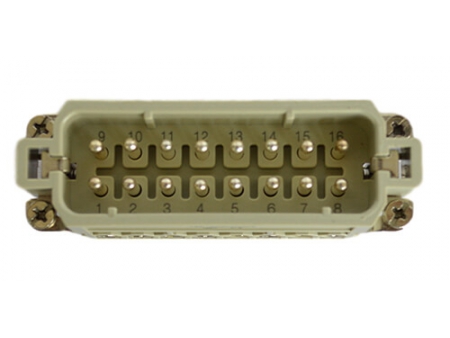

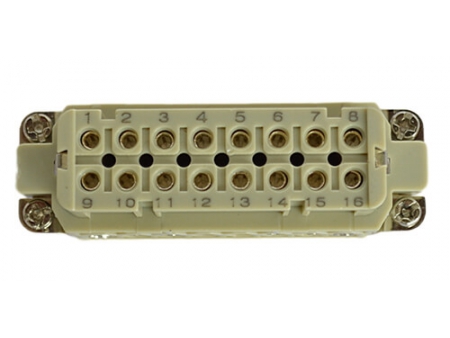

16 pin connector Rated current: 16A Rated voltage: 500V Rated impulse voltage: 4KV Working temperature range: -40℃- 125℃ Contact pin material: copper alloy Pin coating: silver Connection method: screwed connection Plastic material: PC Insulation resistance: ≥10 MΩ	HE-16-F HE-16-M	HE-16-TE4-PG29 HE-16-BK2 HE-16-TE2-PG29 HE-16-BK1
24 pin connector Rated current: 16A Rated voltage: 500V Rated impulse voltage: 4KV Working temperature range: -40℃- 125℃ Contact pin material: copper alloy Pin coating: silver Connection method: screwed connection Plastic material: PC Insulation resistance: ≥10 Ω	HE-24-F HE-24-M-16A	HE-24-TE4-PG29 HE-24-BK2 HE-24-TE2-PG29 HE-24-BK1
