Compactor
SMDJ-1 Marshall compactor provides a stable and rigid mechanism to be used for preparation of bituminous specimens (Φ101.6x63.5mm) for physico-mechanical properties testing.
| Hammer weight | 4.536kg±0.009kg |
| Hammer head size | Φ98.5mm |
| Hammer drop | 457.2mm |
| Specimen size | Φ101.6mm |
| Stroke frequency | 60 stroke times per minute |
| Power | 220V±10% |
| Dimension | 540x500x2000mm (LxWxH) |
| Weight | 90kg |
| No. | Item | Specifcation | Quantity |
| 1 | Digital Marshall Electric Compactor | SMDJ-1 | 1 unit |
| 2 | Test tube | Φ101.6mm | 6 pcs |
| 3 | Protective tube | Φ101.6mm | 1pc |
Automatic Marshall electric compactor is designed to prepare cylindrical specimens of asphalt mixture for a variety of compressive strength tests such as Marshall Stability and indirect tensile strength tests ('Brazil' or splitting tests). The sizes of cylindrical specimens are available in Φ101.6mm×63.5mm and Φ152.4mm×95.3mm.
| Hammer 1 | 4536g±9g |
| Hammer 2 | 10210g±10g |
| Falling of hammer | 457mm±1.5mm |
| Mould 1 | Suitable for Φ101.6mm×63.5mm |
| Mould 2 | Suitable for Φ152.4mm×95.3mm |
| Compaction speed | (60±5)times/min |
| Compaction time | (0～999)times |
| Wooden compaction base | 457mm×200mm×200mm |
| Concrete compaction base | 120mm×460mm×480mm |
| Power supply | AC (220±10%)V, 50Hz |
| Motor power | 370W |
| Overall dimension | 1740mm×540mm×540mm |
| Net weight | About 180kg |

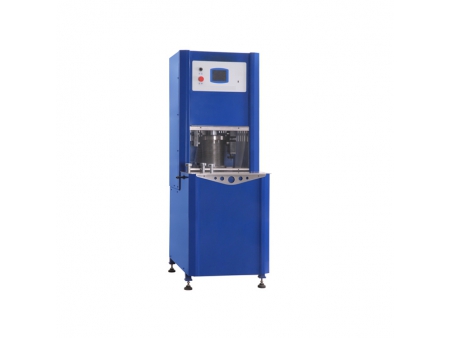

TBT-XY170 Gyrator Compactor is used to simulate and reproduce real compact conditions as on-site paving work to determine the compaction performance of asphalt. The acquired results can be employed in the investigation of volumetric and mechanical characteristics of the asphalt mixture. Our superpave gyratory compactor meets the standards of ASTM D6925 (American Society for Testing Material) and AASHTO T312 (American Association of State Highway and Transportation Officials).
| 1. Movement range for compactor | 0~250mm |
| 2. Molding sample height range | 50~170mm |
| 3. Rotary compaction movement accuracy | Less than 0.10mm |
| 4. Range of gyrate compaction angle | 0~2°, ±0.02°, adjustable |
| (Calibrated at 1.16°±0.02° internal angle when leaving factory) | |
| 5. Rotary compaction pressure | 0~1000kPa, ±3% |
| (Calibrated at 600Kpa±2% when leaving factory, bigger pressure can be customized) | |
| 6. Rotation speed | 30±0.3r/min, custom continuously adjustable speed |
| 7. Spinning times | 0~999 |
| 8. Displace measurement | 0~220mm |
| 9. Test model diameter | Standard Φ150mm, optional Φ100mm |
| 10. Pressure mode | Pneumatic |
| 11. Instrument dimension | 850mm×640mm×1800mm (L*W*H) |
| 12. Package dimension | 1000mm×800mm×1950mm (L*W*H) |
| 13. Model weight | 7.5kg |
| 14. Gross weight | 350kg |
Asphalt slab roller compactor is used to produce representative sample slabs of several dimensions of asphaltic mixtures laid and compacted on site. The sample slab can be used to evaluate the high-temperature strength and stability of the asphaltic mixture.
| Roller radius | 500mm (width: 300mm) |
| Roller compaction linear loading range | 200~700N/cm (can be set up freely) |
| Roller compaction linear loading accuracy | ±3N/cm |
| Roller temperature control range | Room temperature~200℃ |
| Roller temperature controlling accuracy | ±3℃ |
| Rolling times per minute | 12 times/min±1 time/min |
| Slab specimen | 300*300*(30~100)mm |
| Power | 380V AC, 3.0kW (need working null line) |
Roller compaction is the laboratory method that most closely simulates on-site compaction. Asphalt slab roller compactor is used to produce sample slabs of asphaltic paving mixtures with properties that most closely simulate those of materials on site. The sample slab can be used to evaluate the physico-mechanical properties of the asphaltic mixtures, such as high-temperature strength and stability.
| Roller radius | 500mm (width: 300mm) |
| Roller compaction linear loading range | 200~700N/cm (can be set up freely) |
| Roller compaction linear loading accuracy | ±3N /cm |
| Roller temperature control range | Room temperature~200℃ |
| Roller temperature controlling accuracy | ±5℃ |
| Rolling times per minute | 6 times/min±0.5 time/min |
| Slab specimen | 300*300*(30~100)mm |
| Power | 380V AC, 3.0kW (need working null line) |
