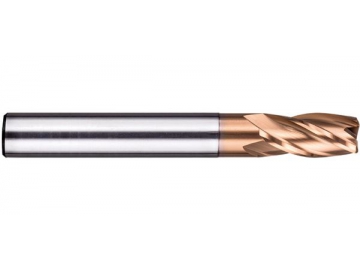

G-R4 Solid Carbide End Mill for Graphite Machining - Corner Radius - 4 Flutes

G-R4  Solid Carbide End Mill for Graphite Machining - Corner Radius - 4 Flutes
G-R4  Solid Carbide End Mill for Graphite Machining - Corner Radius - 4 Flutes
G-R4  Solid Carbide End Mill for Graphite Machining - Corner Radius - 4 Flutes
Request a Quote
Request a quote

Unit: mm

Order CodeCutting Diameter (D)Corner Radius (R)Length of Cut (Lc)Overall Length (L)Shank Diameter (d)Type
G-R4-02002
20.23.5604A
G-R4-03002
30.24604A
G-R4-04002
40.26604B
G-R4-04005
40.55604B
G-R4-06003
60.39756B
G-R4-06005
60.59756B
G-R4-08005
80.512758B
G-R4-08010
8112758B
G-R4-10005
100.51510010Β
G-R4-10010
1011510010B
G-R4-12005
120.51810012B
G-R4-12010
1211810012B

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
