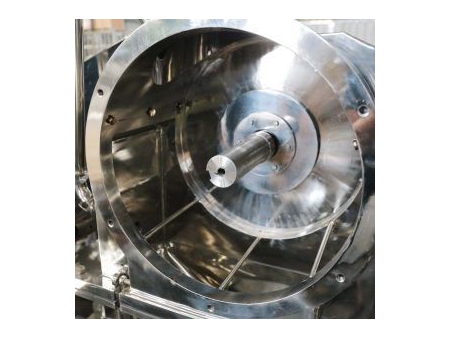

Hammer Mill

Request a Quote

View All: http://finegrindingmill.com/1-9-hammer-mill.html

Easily replaceable wear parts, including moving hammers, grinding disc and cutter teeth

ALPA’s Hammer Mill is an ideal choice for chemical, inorganic salt production, medicine, food, pigment and dye-making, pesticide, battery material, mineral refining and refractory material production and other industries.

How it works

The feeding system evenly distributes the materials into the grinding chamber, where they are exposed to a strong impact from the high-speed rotating grinding moving disc. The combination of friction, shearing and collision between the static disc and gear ring creates comprehensive forces that grind the materials. Depending on specific material properties, different combination of both discs can be used.

Advantages

Grinding particle size range D50: 10 ~ 850 μm

Aperture of sieve 2-3 mm

Compact structure requiring minimal floor space, simple disassembly for cleaning purposes

Closed loop system with low dust and noise level

PLC control system, easy to operate

Low installed power with wide application range and high cost performance

A belt can be used as an effective solution for powering machines when the renowned motor brands do not provide high-speed motors

Explosion-proof design available for processing flammable and explosive materials

Offer designs for high, low and normal temperatures, with air closed circulation and inert gas circulation to meet the temperature requirements of various materials

Technical Parameters

Parameter	CUM-160F	CUM-250F	CUM-360F
Grinding disc diameter (mm)	150	250	350
Max. rotate speed (r/min)	12000	7500	5550
Power (kW)	3~4	5.5~7.5	11~15
Grinding fineness (mesh)	20~325	20~325	20~325
Production capacity (kg/h)	5~50	15~200	25~500

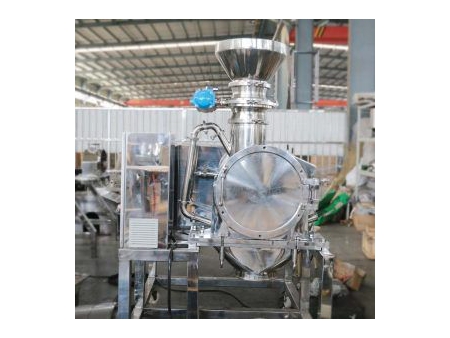

Album
