YM-150

Powder size reduction machine for milling solids in pharmaceutical, chemical and food industries

5 to 50 Kilograms Per Hour
12,000 RPM Maximum Speed

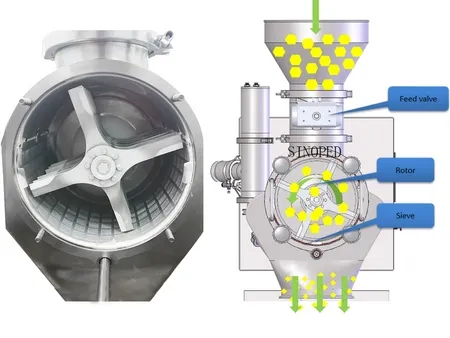

The hammer mill efficiently reduces material size by uniformly feeding solids through a rotary valve into the milling chamber. Utilizing high-speed rotating blades, the material undergoes cutting, shearing, and impact to achieve the desired particle size. Suitable for a wide range of applications, the hammer mill is capable of processing dry, wet, and heat-sensitive materials effectively.

Applications

Pharmaceutical industry: Grinding raw drug materials to ensure consistency in final products
Food industry: Fine grinding of spices, sugar, and other food products while preserving flavor
Chemical industry: Uniform grinding of coatings, plastics, and other materials to improve product quality
Material science: Processing ceramics and metals to enhance material performance

Specifications

Model	YM-150
Grinding Disc Diameter	150mm
Max. Speed	12,000rpm
Power	3-4kW
Grinding Fineness	20-325 meshes
Throughput Capacity	5-50kg/h
