10kV Air Insulated Switchgear

Request a Quote

Website: https://hvpower-equip.com/10kv-air-insulated-switchgear.html

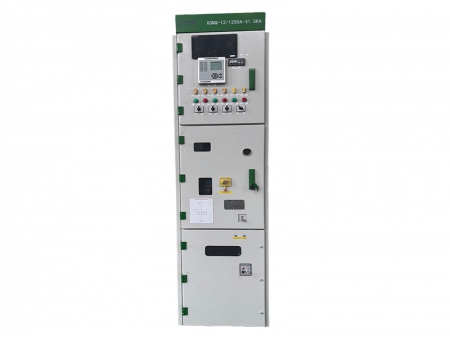

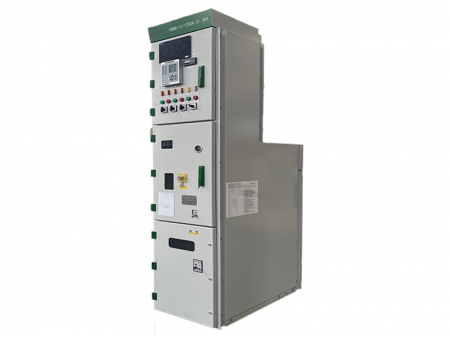

The XGNQ-12 10kV air-insulated high voltage switchgear is an environmentally friendly, dry air insulated switchgear developed based on our extensive experience in power distribution network field service and design. It is designed to receive and distribute network power, providing measurement, monitoring, communication, control, and fault protection for normal system operation.

Features

Absolute Safety: All medium-voltage live parts are installed within a completely sealed stainless steel enclosure, ensuring maximum safety.

Long Mechanical Life: The application of vacuum interrupters with small contact pressure guarantees a high mechanical operation lifespan for the switch.

Operational Safety: Features a complete interlocking system and a user-friendly human-machine interface for safe operation.

Spacious Cable Connection: The cable connection compartment offers ample space, suitable for parallel cable connections and additional surge arresters.

Reliable Interconnections: Each functional unit is equipped with side-mounted electrical connectors for reliable connection with other functional units.
