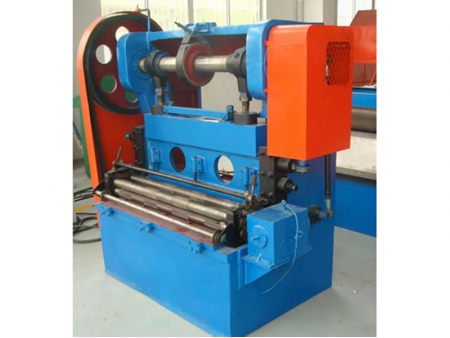

Expanded Metal Machine

Request a Quote

Website: http://rollforming-line.com/11-11-expanded-metal-machine.html

There are different kind of thermal spraying equipment, like plasma spraying equipment, arc spraying equipment and HVOF flame spraying machine.

• A=Material thickness

• B=Strand width

• C=Mesh Width

• D=No limit

• L & M are needed for designing punching moulds for expanded metal mesh production line.

• Heavy-duty Expanded Metal Machine
• Middle-sized Expanded Metal Mesh Machine
• Small-sized Expanded Metal Mesh Machine

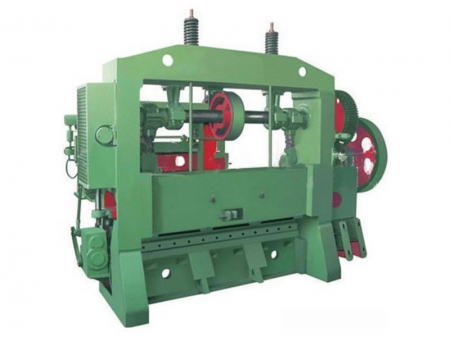

Heavy-duty Expanded Metal Machine

• Suitable mesh width 2000-2500mm
• Punching force 63-220T
• Feeding stroke 0-8mm
• Machine weight 10-25T

Technical Parameters

Item	HE-6-2500	HE-8-2000	HE-6-2000	HE-4-2000	HE-2.5-2000
Applicable material	HRC, CRC, stainless steel, copper, aluminum, lead, titanium
Suitable mesh width	2500mm	2000mm
Max. metal thickness (carbon steel)	6mm	8mm	6mm	4mm	2.5mm
Punching force	100T	220T	100T	63T	63T
Feeding stroke	0-8	0-8mm	0-6mm	0-4mm	0-6mm
Drive motor power	22kW	50kW	15kW	15kW	11kW
Punching times	40/min	45/min	45/min	60/min	70/min
Machine weight	18T	25T	12T	12T	10T
Machine length	5500mm	6000mm	3600mm	3600mm	3500mm
Machine width	3300mm	2400mm	3100mm	2500mm	2400mm
Machine height	1750mm	1750mm	2280mm	3000mm	2300mm

Middle-sized Expanded Metal Mesh Machine

• Suitable mesh width 1500-2500mm
• Punching force 120-140T
• Feeding stroke 0-7mm
• Machine weight 5-8T

Technical Parameters

Item	ME-4-1300	ME-2.5-1500	ME-3-2500
Applicable material	HRC, CRC, stainless steel, copper, aluminum, lead, titanium
Suitable mesh width	2500mm	1500mm	2500
Max. metal thickness (carbon steel)	4mm	2.5mm	3mm
Punching force	125T	140T	120T
Feeding stroke	0-5	0-2.5mm	0-7mm
Driving motor power	15kW	11kW	17kW
Punching times	85/min	100/min	45/min
Machine weight	5T	6T	18T
Machine length	2500mm	2870mm	4000mm
Machine width	1800mm	1990mm	3500mm
Machine height	2400mm	2140mm	2400mm

Small-sized Expanded Metal Mesh Machine

• Suitable mesh width 1000-1250mm
• Punching force 40-100T
• Feeding stroke 0.3-5mm
• Machine weight 2-3.5T

Technical Parameters

Item	SE-1.5-1250	SE-1.0-1000	SE-1.5-1000	SE-4.0-1000
Applicable material	HRC, CRC, stainless steel, copper, aluminum, lead, titanium
Suitable mesh width	1250mm	1000mm	1000	1000
Max. metal thickness (carbon steel)	1.5mm	1.0mm	1.5mm	4mm
Punching force	50T	40T	50T	100T
Feeding stroke	0.3-3	0.3-2mm	0.3-3mm	0.3-5mm
Driving motor power	7.5kW	5.5kW	7.5kW	11kW
Punching times	200/min	300/min	200/min	120/min
Machine weight	2.5T	2T	2T	3.5T
Machine length	2200mm	1800mm	1800mm	1800
Machine width	1100mm	900mm	900mm	1100
Machine height	1600mm	1500mm	1500mm	1500
