Cylinder Inner Wall Shot Blasting Machine
This slot blasting machine is applied with dedusting system with the view to clean the steel cylinder inner wall.
Configuration
- Shot blasting room
- Cylinder inverting device
- Blast gun moving system
- Cylinder rotating device
- Automatic loading and unloading device
- Impeller head
- Dedusting system
- PLC control system
Technical Parameters
- Cylinder diameter range219-406mm
- Maximum cylinder height2000mm
- Maximum cylinder weight220kg
- Working speed20~24 pieces per hour
- Sand diameterΦ0.8mm
- Impeller (Quantity of nozzle)2
- Impeller (Sand storage)0.26m3/0.5t
- Impeller (Blasting flow)800-1200kg/h
- Impeller (Air pressure consumption)0.5-0.7MPa

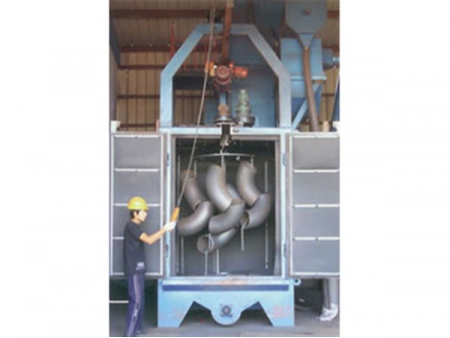

Hook-type Shot Blasting Machine
The hook-type shot blasting machine is especially designed for cleaning or strengthening those workpieces featuring long, thin-wall, and complex structure. This device takes advantage of hooks for feeding workpiece into cleaning chamber. These hooks will rotate during the process of blast cleaning.
Configuration
- Electrical hoist conveying system
- Steel grit cleaning system
- Dedusting system
- Steel grit recycling system
- Impeller head
- Electric control system
Technical Parameters
- Maximum workpiece sizeΦ1000×2000 mm
- Maximum workpiece weight4000kg
- Steel grit sizeΦ0.8-1.5mm
- Initial steel grit loading quantity1000kg
- Cleaning efficiency7-8 minutes per hook
- Rust-removing quality gradeSa2.5
- Impeller (Quty of antinozzle)3
- Impeller (Vane diameter)Φ250mm
- Impeller (Blasting flow)150kg/min
- Impeller (Material of vane)high chrome cast iron
- Dedusting system (Total air quantity)15000m3/h
- Dedusting system (Filtering air speed)0.8~1.2m/min
- Dedusting system (Quantity of filters)24pcs
- Dedusting system (Compressed air consumption)1m3/min
