Passenger Van (Ford, 9 Seats)

Request a Quote

Website: http://commercialtruck-en.com/12-2-1-passenger-van-ford-9-seats.html

The Ford 9-seat passenger van combines strong performance with efficiency, powered by a 2.0T EcoBoost engine and a 9-speed automatic transmission that balances power with fuel economy at around 8.5 L/100 km. Its high-roof design provides over 5 m³ of flexible space, with three rows of seats that can be individually folded or removed, allowing a quick 10-second switch between passenger and cargo modes. Equipped with advanced L2 driver assistance, dual power sliding doors, and an intelligent connectivity system, the passenger van supports remote temperature control and OTA upgrades. Safety is assured through rigorous certifications, while the reinforced rear suspension ensures stable performance across varied road conditions.

The 2025 model introduces an upgraded CN95-grade air filter and battery thermal management system, enhancing comfort in hot climates where the van can be pre-cooled via remote start. Designed to serve family travel, business reception, and small-scale commercial use, it is a versatile solution for all-around mobility.

Specifications

Vehicle type				Business travel type passenger van
				9 seats
				Medium wheelbase, medium roof
				Diesel
General
Engine	Model			DURATORQ4D20C6H
	Type			Inline, four-cylinder, turbocharged with intercooler, high-pressure common rail
	Displacement (L)			1.998
	Max. power (kW)			105
	Max torque (N.m/rpm)			355/1400-3200
	Power density (kW/L)			52.1
	Fuel type			Diesel
	Fuel tank capacity (L)			80
	Emission standard			National VI
Transmission				5-speed manual transmission
Performance		Max. safe speed (km/h)		160
		Fuel consumption (L/100km, at 90 km/h constant speed) (The fuel consumption value is measured under conditions of standard tire pressure, ambient temperature of 20 °C, standard atmospheric pressure, and full load.)		7.6
		Min. turning radius (m)		6.5
Brake				Front disc brake/rear disc brake
Suspension		Front suspension		MacPherson independent suspension
		Rear suspension		Leaf spring non-independent suspension
Drive mode				Front-wheel drive
Steering system		Hydraulic power steering		Standard
		Electric power steering		-
Dimensions		Exterior dimensions	Length (mm)	5341
			Width (mm)	2040 (single step)/2296 (with rearview mirrors)
			Height (mm)	2375
		Interior dimensions	Length (mm)	356(three row of seats)/995(four row of seats)
			Width (mm)	1718
			Height (mm)	1735
		Side sliding door width (mm)		930
		Rear door width (mm)		1404
		Rear door height (mm)		1706
		Cargo loading capacity (m³)		N/A
		Wheelbase (mm)		3300
		Min. ground clearance (mm)		187
		Front/rear overhang (mm)		1014/1027
		Front track width (mm)		1736
		Rear track width (mm)		1720
		Tyre Ш		215/75R16 LT
Weights		Curb weight (kg)		2380
		Gross weight (kg)		3510
Exterior Features
Front face				Painted
LED headlamp				Standard
LED daytime running lights (DRL)				Standard
LED tail lamp				Standard
UV-protection windshield				None
Full wheel cover				Standard
Steel wheel				Standard
Aluminum alloy wheel rim				Optional
Front & rear mudguards				Standard
Electrically adjustable mirrors				Optional
Electrically heated mirrors				Optional
Side door		Single side		Standard
		Double side		None
Rear door				Swing-out doors
Luxury chrome-plated entry step				Standard
Sliding windows				Optional
Interior Features
Integrated center console design				Standard
Front windows				Electric
Driver seat: 8-way manual adjustment with lumbar support				Standard
Passenger seat: 4-way manual adjustment				Standard
Anti-glare interior rear-view mirror				Standard
Front interior roof light				Standard
Rear interior roof light				Standard
Partition				None
Coat hook on partition				None
Cigarette lighter				Standard
AUX port				Standard
USB charging				Standard
Rubber insulated floor				Standard
Height adjustable front seatbelt				Standard
Safety Features
All-metal enclosed load-bearing body				Standard
Driver airbag				Standard
Passenger airbag				Optional
Driver seatbelt reminder				Standard
Seatbelt reminder for all seats				Optional
ISOFIX child seat anchor				Standard
Headrests & 3-point seatbelts for all seats				Standard
Rearview camera reversing radar				Standard
ESP HHC				Standard
Cruise control				Standard
Automatic headlamp				Standard
Adaptive front lighting				Optional
Intermittent multi-speed adjustable front wiper				Standard
Automatic wiper				Standard
Overspeed warning (120 km/h)				Optional
Battery management system with smart regeneration				Standard
PATS electronic anti-theft system				Standard
Vehicle anti-theft alarm				Standard
Central locking				Standard
Remote key				Standard
High-mounted stop lamp				Standard
Tyre pressure monitoring system (TPMS)				Standard
ADAS package 1 *				Optional
ADAS package 2 *				None
Mid-level operation package *				None
High-level operation package *				Optional
Driving recorder (DVR)				Optional
Comfort & Convenience
3.5" LCD instrument cluster 8" center display (basic)				Standard
Dual 12.3" integrated high-end LCD screens				Optional
Multifunction steering wheel				Standard
High-power heating & air conditioning				Standard
Air conditioning with pollen / PM2.5 filter				Standard
Multi-angle adjustable air vents				Standard
Anti-submarining seats				Standard
Twin passenger seat with independent adjustable backrests				Standard
Seat upholstery	Fabric			None
	Leather			Standard
Hidden antenna				Standard
Intelligent multi-color ambient lighting				Optional
ETC				Optional
Rear-row USB charging ports				Standard
Telematics package 1 *				Standard
Color Options
Exterior color				White

Details Showcase

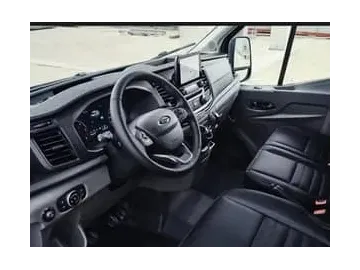

Driver cab
Steering wheel
