Grid Pasting Machine
The grid pasting machine is suitable for smearing the paste on both surfaces of lead-acid battery grids. It can finish grid feeding and pasting, water and acid feeding in one cycle automatically.
Main Features
- Longer grid loading mechanism ensures safer operation.
- Loading mechanism is adjustable, making it adapted to grids with various sizes.
- Pasting speed can be adjusted according to different sizes of grids.
- Bigger diameter passive roller brings 2050mm long coating belt
- Special paste ration feeding design reduces paste waste.
- Special double-layer paste hopper design avoids paste entering into bearing of rollers.
- Adopts centralized lubrication for paste hopper
- All the parts contacting acid in the acid feed system are made using acid-proof stainless steel.
- Features acid pouring axles with integral structure, offering longer service life.
- The transition roller is made from special material, avoiding paste adhesion on it.

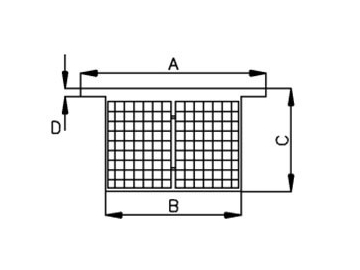

Suitable Plate Dimension
| Item | Specifications |
| Length B | 220～360mm |
| Width C | 110~170mm (without lugs) |
| Thickness | 1.2~4.5mm |
| Lug width D | ≥15mm |
Technical Specifications
| Item | Specifications | ||
| Production capacity | 80-140 grids / min | ||
| Paste hopper capacity | 160kg | ||
| Paste weight error | Big grid | ≤300g | ±5g |
| ≥300g | ±1.5% | ||
| Small grid | ±1g | ||
| Uniformity of grid paste | ±0.05mm | ||
| Pasting result | Both positive and negative plates have no rib exposing, no sticky paste or lack of paste. | ||
| Plate surfaces are even & flat, no scratches | |||
| Total power | 15.5kW | ||
| Air supply | 0.4-0.6MPa, 0.2m³/min | ||
| Machine dimension | 3828 x 1310 x 1915 mm | ||
| Machine weight | About 2300kg | ||
