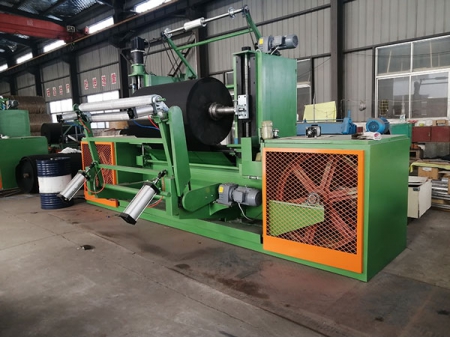

Round Block Peeling Machine
Request a Quote

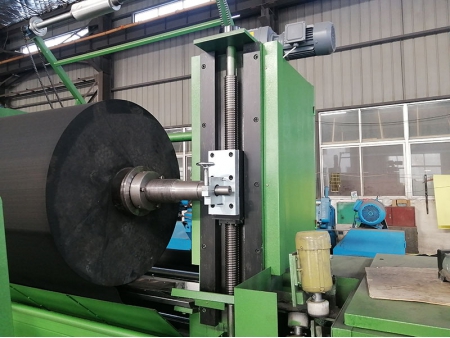

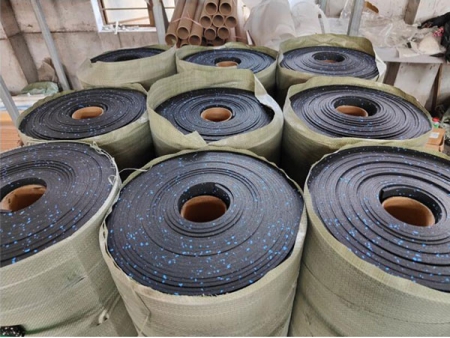

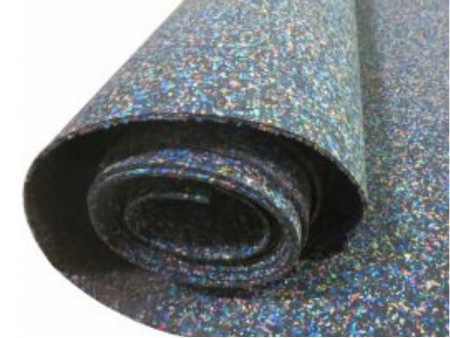

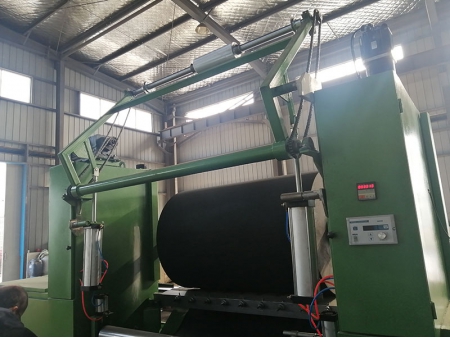

Round block peeling machine is mainly designed to convert round blocks of rubber, foam or cork into endless thin sheets. This rubber and foam peeling machine is configured with servo motor and CNC control system to ensure high cutting precision and consistent cutting thickness, while delivering improved production efficiency with easy operation. The round block peeling machine can be extensively used for the production of playground matting, rubber sheet rolls, anti-skid rubber flooring, and more.
Technical Parameters
- Overall size: 5200*4000*2600mm
- Weight: 5300kg
- Max. cutting width: 1400mm
- Cutting thickness: 1-10mm
- Material hardness for cutting: < Shore 85º
- Cutting speed: (0-15)m/min
- Total power: 20.5kW
- Power source: 380V, 3P, 4 wires, 50Hz

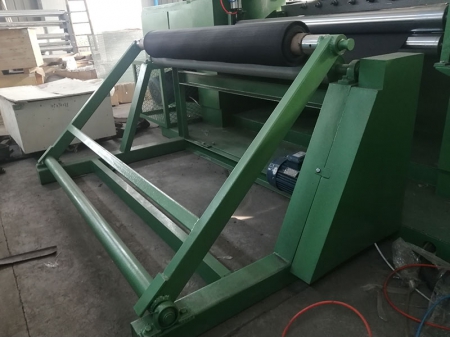

- Winding system for winding up finished sheets
- Edge trimming unit for cutting the round block to a desired width
- Max. cutting diameter: Ø1000mm
