Bundy Tube Serpentine Bending Machine
Request a Quote
Bundy Tube Serpentine Bending Machine

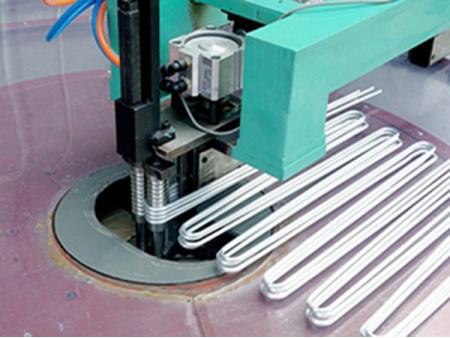

The round metal serpentine tube bending machine is specially designed to bend multiple round copper, aluminum, or Bundy tubes into a serpentine tube.
The machine includes an automatic feeding device, an automatic bending head and a PLC control system. It is PLC controlled with HMI operation. The feeding length, bending radius and bend quantity can be preset on the touch screen, and numerous programs can be saved for future use.
Technical Data
- Suitable tube materialBundy tube, straight cut
- Suitable tube diameter2-6mm
- Suitable tube wall thicknessMax. 1.0mm
- Fixed table diameter2500mm
- Bending radiusMax. 70mm, min 10mm
- Bending angle0-200º
- Max. Tube quantity bent together20 @ Φ4.76mm
- Feeding speed0-1000mm/s
- Feeding precision±0.05mm
- Bending speed0-300º/s
- Compositive bending efficiency4 seconds per bend
- Bending axis re-positioning accuracy±0.1º
- Feeding axis re-positioning accuracy≤0.3mm @ L≤1000mm ≤0.6mm @ L>1000mm
- Straightness tolerance≤0.5%
- Pneumatic pressure source0.6MPa
- Total motor power3kW (feeding motor bending motor)
