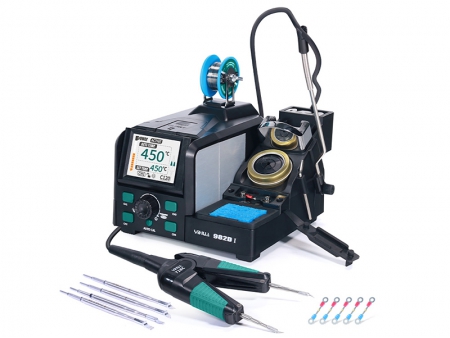

YIHUA 982D I Desoldering Rework Soldering Station with Adjustable Micro Tweezer
Request a Quote

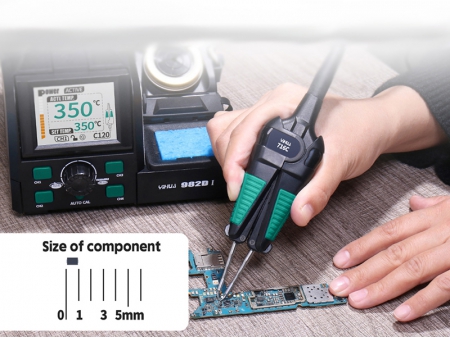

- High-precision tweezers soldering system: YIHUA 982D I soldering station features a high-performance cartridge-based design compatible with C120 series tips. The precision tweezer handpiece makes desoldering SMD components, such as resistors, capacitors, and diodes, fast, accurate, and efficient.
- Rapid heat-up and consistent temperature control system: Heats to operating temperature in just 2 seconds, with an adjustable range from 90°C to 450°C. Millisecond-level PID temperature control and built-in digital calibration ensure tip temperature remains stable and consistent, requiring no external measurement tools, even when working with components of varying thermal mass.
- Advanced LCD display: The new full-color LCD screen offers high contrast for easy parameter monitoring. The adjustable tilt design allows users to view settings clearly, no matter the station’s placement or working height.
- Four programmable memory channels: Convenient CH1/CH2/CH3/CH4 memory channels let you preset and instantly access your most-used temperature settings for different soldering applications, improving efficiency and workflow.
- Auto sleep mode: The sleep mode is automatically activated when the handpiece is placed in the holder, reducing oxidation and prolonging the lifespan of the soldering tip.

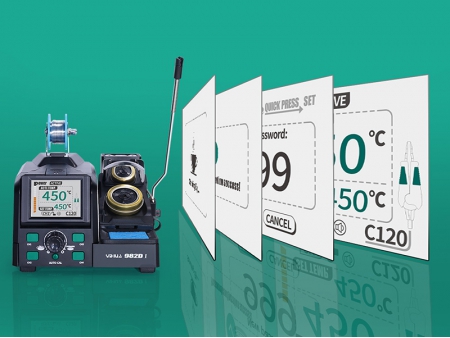

- Smart menu: Access seven intelligent features via the station menu, including:
- Buzzer feedback
- °C/°F conversion
- Password protection
- Language selection
- Password setup
- On-screen user manual
- Auto shut-off timer (1–10 minutes) – automatically powers down the station when not in use, enhancing safety and energy efficiency.
- Multi-functional design: The station incorporates a variety of convenient built-in tools, including brass wool tip cleaner, temperature-resistant sponge, tip storage slots and tip change groove, solder wire dispenser, handpiece cable guide, calibration thermocouple.
| Model | 982D I |
| Rated voltage range | 110-240V, 50-60Hz |
| Rated power | 80W |
| Main unit dimensions | L177×W152×H110±5mm |
| Operating ambient temperature | 0-40℃/32-104℉ |
| Temperature range | 90-450℃/194-842℉ |
| Display | LCD |
| Tip-to-ground resistance | ＜2 Ohms |

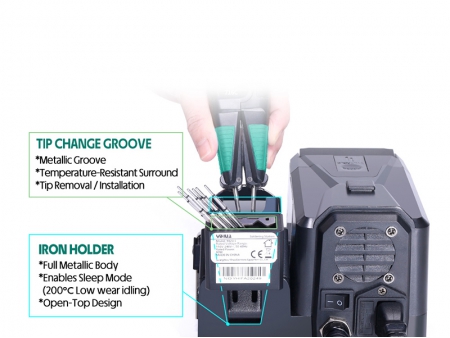

Designed for Micro-SolderingIntegrated Tip Storage Slots and Tip Change GrooveEnsure safe and easy iron storage and tip change

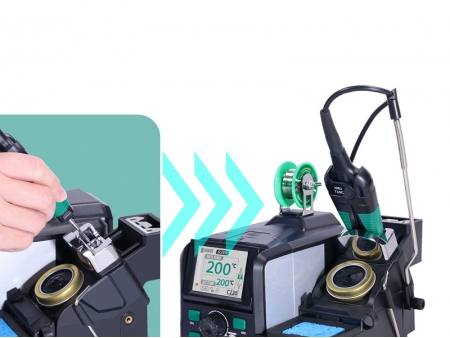

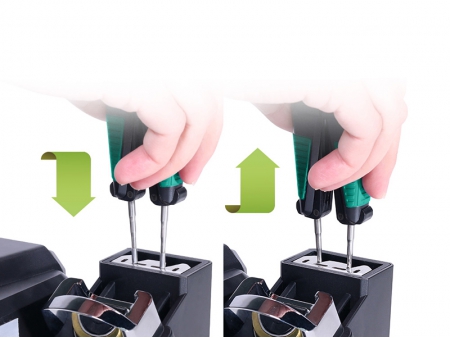

Easy Tip ChangeThe station offers quick tip changing, requiring no additional tools.

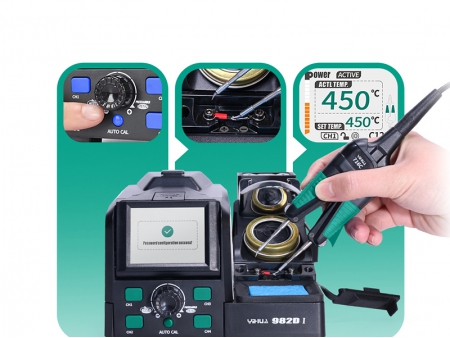

Auto CalibrationThe station ensures accurate and consistent tip temperature maintenance.

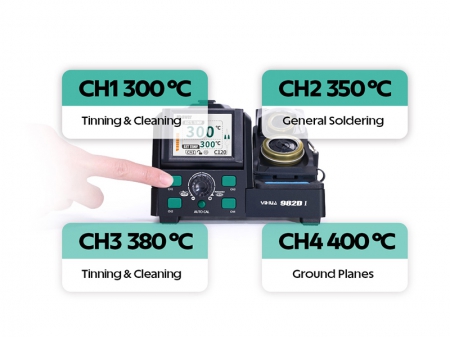

Four Preset ChannelsThe temperature settings can be easily adjusted to your specific requirements. The temperature settings below are for reference only.
Low-Wear IdlingWhen the temperature exceeds 200℃, the station automatically enters low-wear idle sleep mode to protect the tip and extend its lifespan.

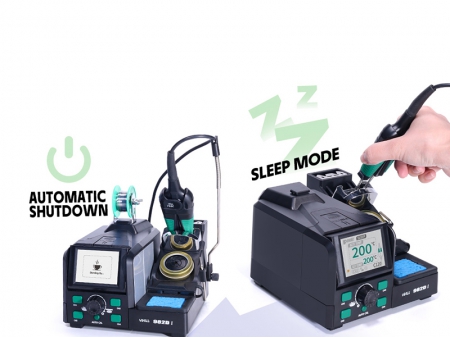

Sleep Mode and Power-Off SettingsIf you need quick after-sales support
