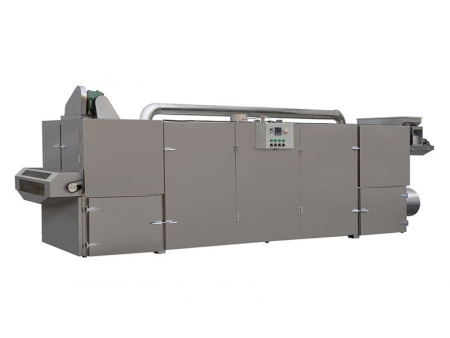

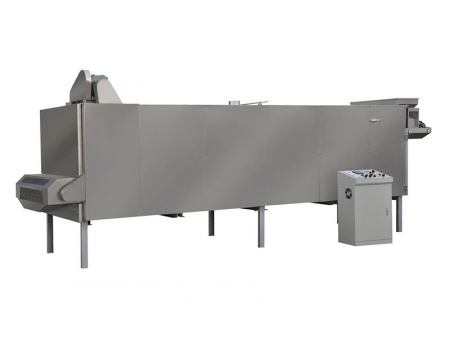

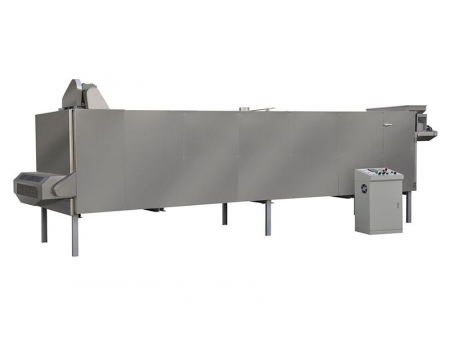

This continuous belt dryer/oven is versatile and can be used to dry and bake a variety of products including puffs, cereals, corn flakes, pellets, pet food, and fish. You can choose according to your requirements of the application, capacity, moisture consumption, drying/baking temperature, and heating source.

We also supply customized dryer machines according to your specific needs.

Main Features
  • The continuous belt dryer is compact and easy for operation.
  • Double-pitch roller chain driving and circulating drying ensures steady and stable operation.
  • Drying temperature and time is precisely controlled which results in perfect drying effect.
  • The continuous belt dryer is designed with efficient energy saving system and heat distribution system, which ensures materials can be heated evenly at low energy consumption and high output operation conditions.
  • The belt drying equipment provides uniform air velocity and temperature distribution. So, there is no need for diffuser plates.
  • The internal baffles in the dryer enables us to control the airflow direction simply.
  • Control system is available to enhance the dryer's performance and efficiency.

Specifications
Model Electric/Gas/Diesel Heating Temperature Output Size (L*W*H) Applied Products
LTD-3D Three-layer Electric Oven
30kw/h ~180℃ 150kg/h 5400x1300x2000mm Puffs, Corn Flakes&Breakfast Cereals, Pet Food, Nutritional Powder, Modified Starch etc
Three-layer Gas/Diesel Oven
4.8-10 m³/h(gas) 5.1-10kg/h (diesel) ~180℃ 150kg/h 6500x1600x2000mm Puffs, Corn Flakes&Breakfast Cereals, Pet Food, Nutritional Powder, Modified Starch etc
LTD-3D Three-layer Electric Oven(Longer)
45kw/h ~180℃ 250kg/h 7000x1600x2150mm Puffs, Corn Flakes&Breakfast Cereals, Pet Food, Nutritional Powder, Modified Starch etc
LTD-3GII Three-layer Gas/Diesel Oven(longer)
16-22 m³/h (gas) 7-14kg/h (diesel) ~180℃ 250kg/h 8000x1800x2150mm Puffs, Corn Flakes&Breakfast Cereals, Pet Food, Nutritional Powder, Modified Starch etc
LTD-5D Five-layer Electric Oven
60kw/h ~180℃ 250kg/h 5800x1300x2400mm Puffs, Corn Flakes&Breakfast Cereals, Pet Food, Nutritional Powder, Modified Starch etc
LTD-5G Five-layer Gas/Diesel Oven
16-22 m³/h (gas ) 7-14kg/h (diesel) ~180℃ 250kg/h 6000x1500x2400mm Puffs, Corn Flakes&Breakfast Cereals, Pet Food, Nutritional Powder, Modified Starch etc

Thank your for your attention. In addition to continuous belt dryer, we can also offer bread pan cutter, meat production line and baking snack machinery, etc. If you want to learn more about our products, please contact us by phone or Email.
