2TH06LT Hydraulic Pilot Control Valve

2TH06LT  Hydraulic Pilot Control Valve
2TH06LT  Hydraulic Pilot Control Valve
2TH06LT  Hydraulic Pilot Control Valve
Request a Quote
  • Designed for easy setup, thanks to its compact size and streamlined design
  • Adapts well to different uses due to its sectional design
  • Simple to operate, making handling smooth and effortless
  • Responds quickly and accurately, ensuring reliable performance
  • Customizable pressure settings to precisely match the requirements of multi-directional valves, enhancing compatibility and performance
Applications
  • Wheel loaders
  • Excavators
  • Cranes
  • Agricultural machinery
  • Forestry equipment
Parameters
Pilot pressure (MPa) Maximum 7
Control flow (L/min) Maximum 20
Opening pressure (MPa) 0.4
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20℃~80℃
Viscosity range (mm2/s) 10~380
Fluid cleanliness Not lower than GB/T 14039-2002 level 18/15 or NAS 1638 level 9
Weight (kg) 0.9

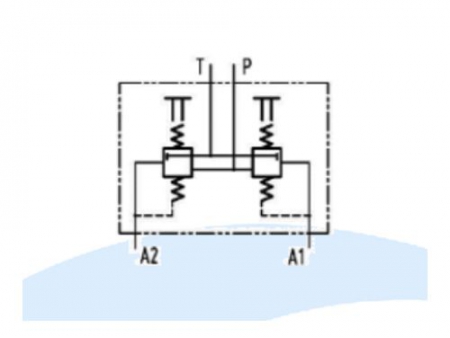

Hydraulic System Schematic Diagram
Installation Connection Dimension

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
