4TH08 Hydraulic Pilot Control Valve
Request a Quote
- All connection ports are on the component's surface, simplifying installation and saving time
- Engineered to require minimal operational force, which enhances comfort and reduces fatigue during prolonged use
- Hydraulic pilot control valves stand out by their rapid response and high sensitivity to control inputs, ensuring precise operation
- Customization of the pressure characteristics curve is available to meet the specific demands of various multi-way control valve systems, providing flexibility in application
- The control valve design includes configurable options for left or right-hand operation, accommodating user preferences and setup requirements
Applications
- Excavator
- Wheel loaders
- Agricultural machinery
Parameters
| Pilot pressure (MPa) | Maximum 7 |
| Control flow (L/min) | Maximum 20 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～90℃ |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 2.65 |

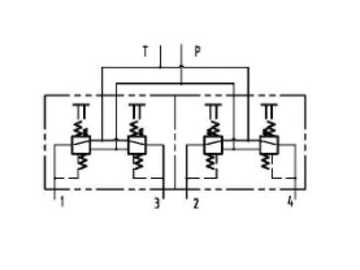

Hydraulic System Schematic Diagram

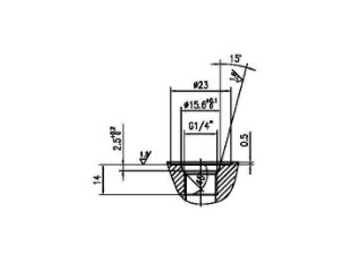

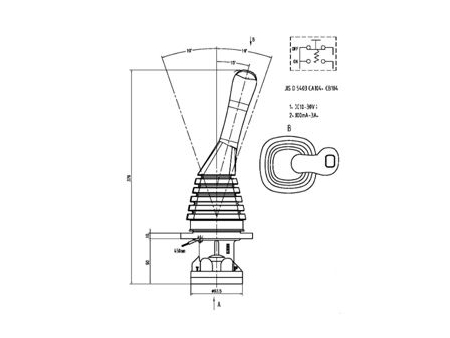

Installation Connection Dimension
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
