Light / Medium Duty Gravity Conveyor Roller
Request a Quote
AL1100
Non-powered rollers for gravity roller conveyor

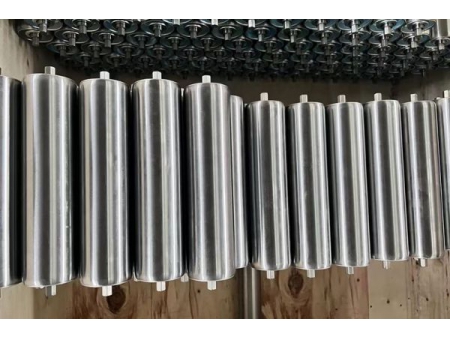

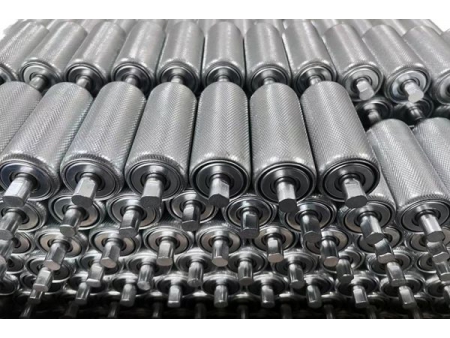

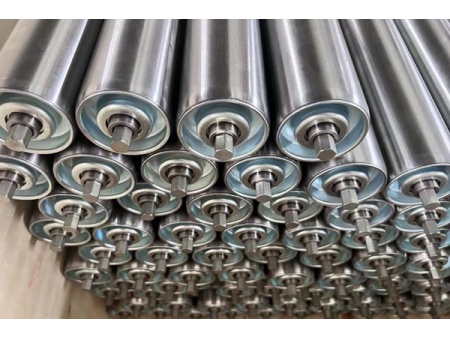

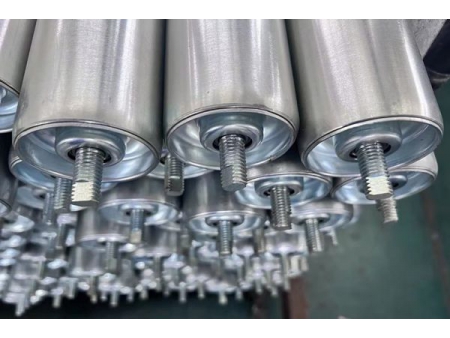

The body of the light and medium duty gravity conveyor roller is made of stainless steel, featuring corrosion resistance, high temperature resistance, and pressure resistance. It can be used for transporting items such as cardboard, containers, barrels, or tires, and is suitable for non-powered or gravity roller conveyors.
Non-powered roller is used when the goods are light and the operation speed is slow, for example, when moving goods up and down to ensure smoother operation. As it is a non-powered roller, the equipment frame needs to be placed at an angle when using this type of roller.
Applications
Light and medium duty gravity conveyor roller is suitable for light-duty non-powered or gravity roller conveyors.
Features
- Semi-precision stamped bearings
- Flexible rotation, low manufacturing cost

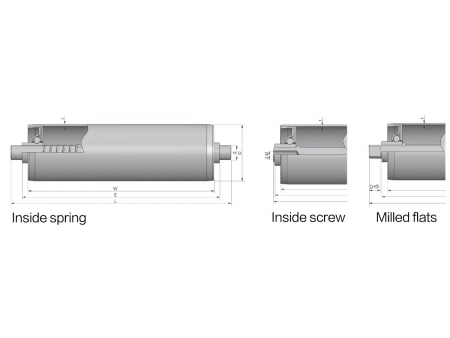

Technical Data
| Tube Diameter (D) | Tube Thickness (T) | Axis Diameter (d) | Tube Material | ||
| Galvanized Steel | Stainless Steel | Aluminum Alloy | |||
| 25 | 1.2/1.5 | 8 | √ | √ | |
