FC Connector
Request a Quote
Applications
Specification- Gigabit Ethernet
- Videos
- Multimedia
- Active device termination
- Premise installations
- Telecommunication networks
- RJ-45 style interface
- Compact, pull-proof design
- High precision alignment
- Behind-the-Wall style short connector
- UL-rated plastic housing and boot
- Low insertion loss and back reflection loss
- Polarized and color coded (TIA568-A & ISO 11801)
| Item | PC | APC |
| Insertion Loss | ≤0. 30dB | ≤0. 30dB |
| Ret urn Loss | ≥50 dB (PC) ≥60 dB (APC) | / |
| Durability | <0. 20 dB typical change, 1000 matings | / |
| Operating Temperature | -40 to 85°C | -40 to 85°C |
| Ferrule Hole Sizes | 125.0 1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3.0μm |
| 125.5 1/-0μm, Concentricity: ≤1.0μm | / | |
| 126.0 1/-0μm, Concentricity: ≤1.0μm | / |
Outline Drawing

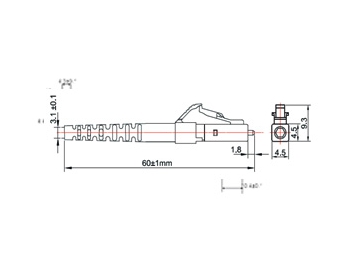

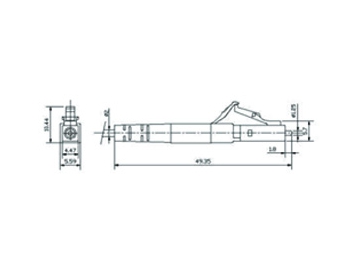

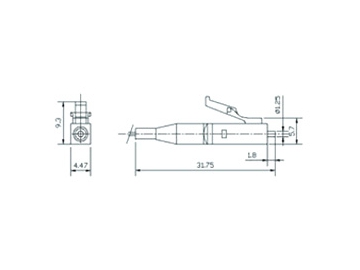

- 0.9mm LC SX Connector
- 2.0mm LC SX Connector

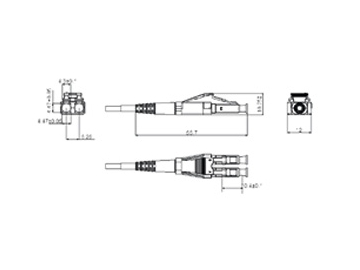

- 2.0mm LC DX Uniboot Connector
- LC Connector with Flex Boot
